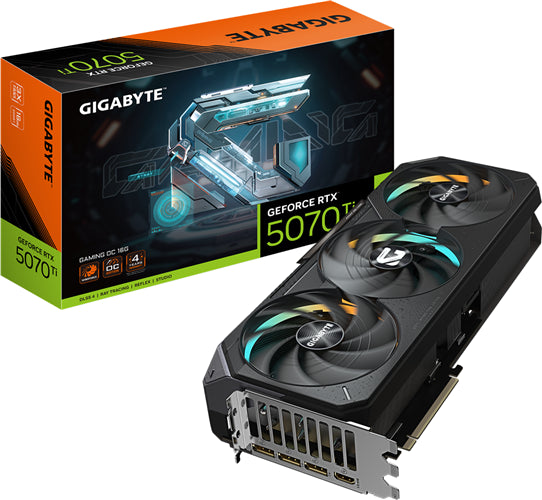

Gigabyte GV-N5070Ti Gaming OC-16GD RTX5070Ti 16GB PCIE Graphics Card

GeForce RTX™ 5070 Ti GAMING OC 16G
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX™ 5070 Ti
- Integrated with 16GB GDDR7 256bit memory interface
- WINDFORCE cooling system
- Hawk fan
- Server-grade thermal conductive gel
- RGB Halo
- Dual BIOS (Performance / Silent)
- Reinforced structure
- Versatile VGA holder

NVIDIA Blackwell Architecture - The Ultimate Platform for Gamers and Creators
- Fifth-Gen Tensor Cores: Max AI performance with FP4 and DLSS 4
- New Streaming Multiprocessors: Optimized for neural shaders
- Fourth-Gen Ray Tracing Cores: Built for Mega Geometry
- AI-Enhanced Graphics and Performance: NVIDIA DLSS 4 with Multi Frame Generation
- Game-Winning Responsiveness: NVIDIA Reflex 2 with Frame Warp
- True-to-Life Graphics: Full ray tracing with neural rendering
- Digital Humans and AI Assistants: NVIDIA ACE
- Accelerate Your Creativity: NVIDIA Studio creator tools and technology
- Enhance Any Video with AI: NVIDIA Broadcast and ninth-gen NVIDIA Encoder
- Performance and Reliability: NVIDIA app with Game Ready and Studio Drivers
- The Ultimate Gaming Display Technologies: NVIDIA G-SYNC

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.

HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

LARGE VAPOR CHAMBER & COMPOSITE COPPER HEAT PIPE
The large vapor chamber directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

ASTONISHING EXTERIOR DESIGN
The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.

MULTI-LAYERED VISUAL
Like armor, the exterior features a multi-layered structure combined with varied surface material finishes. This design not only enhances its technological aesthetics but also optimizes airflow, ensuring outstanding performance.

UNIQUE TEXTURE
Unique textures cover the curved surface, paired with the layering of appreance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics.

RGB HALO
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

SLIDING SIDE PLATE
Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.

REINFORCED STRUCTURE
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

DUAL BIOS (Performance / Silent)
The factory default setting is Performance mode, which provides users with the best performance. However, switching to Silent mode will enjoy a quieter experience.

POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

VERSATILE VGA HOLDER
Our newly designed VGA holder offers dozens of customizable mounting options, ensuring your graphics card is securely supported and prevents sagging. Its sleek design allows for discreet installation, enhancing the overall aesthetics of your system.

SUPERIOR CRAFTSMANSHIP
- ULTRA DURABLE: Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
- FRIENDLY PCB DESIGN: Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Graphics Processing: GeForce RTX™ 5070 Ti
Core Clock: TBD
CUDA® Cores: 8960
Memory Clock: 28 Gbps
Memory Size: 16GB
Memory Type: GDDR7
Memory Bus: 256 bit
Card Bus: PCI-E 5.0
Digital max resolution: 7680 x 4320
Multi-view: 4
Card size: L=340 W=140 H=70 mm
PCB Form: ATX
DirectX: DirectX 12 API
OpenGL: OpenGL 4.6
Recommended PSU: 750W
Power Connectors: 16 pin*1
Output: DisplayPort 2.1b x3, HDMI 2.1b x1
Accessories: VGA manual, Warranty notice, 1x 12V-2x6 to 3x PCIe 8pin adapter, Versatile VGA holder, Versatile VGA holder manual
