TP-Link TX201 PCI Express Network Adapter 2.5 Gigabit
TP-Link
TP-Link TX201 PCI Express Network Adapter 2.5 Gigabit
**Inventory count is updated overnight**
**ADDITIONAL CHARGES MAY APPLY TO LARGE OR BULKY ITEMS**
**SOME ITEMS MAY REQUIRE SHIPPING QUOTES AND WILL BE CHARGED ONCE QUOTE ACCEPTED**
2.5 Gigabit PCIe Network Adapter
- 2.5 Gbps Networking: Reaches blazing-fast data rates up to 2.5 billion bits per second—2.5× faster than standard Gigabit Ethernet, ideal for bandwidth-intensive tasks.
- Versatile Compatibility: Backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.

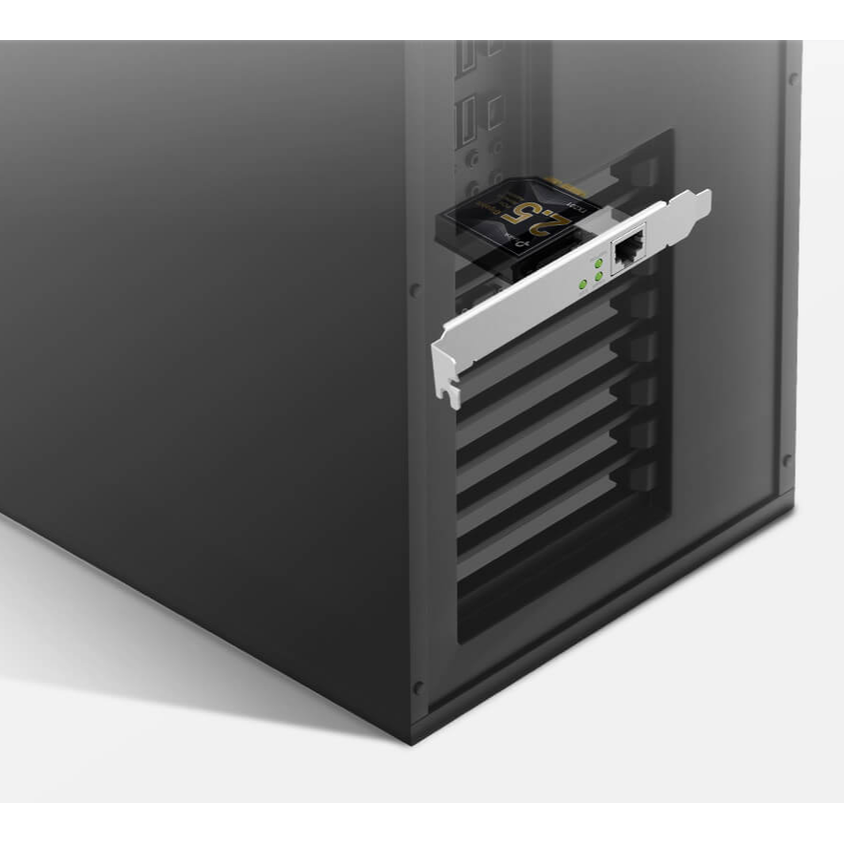

- Low-Profile and Full-Height Brackets: Includes both standard and low-profile brackets for mini tower computer cases, offering flexible installation options.
- Comprehensive System Support: Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, and Linux.
Incredible 2.5G Networking: Blazing-fast data rates for local data transfer or Internet access.

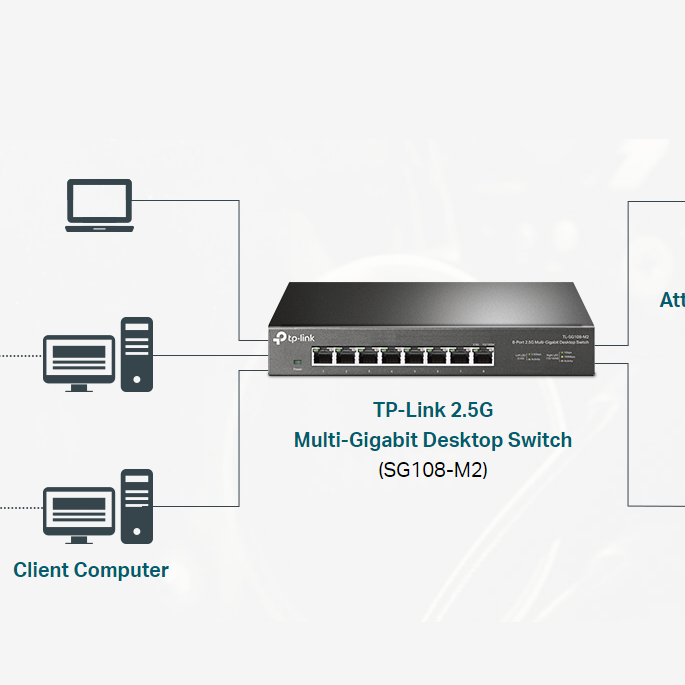

Household Storage, Share in Seconds: Helps build a lightning-fast transport channel between central storage and other machines in a local network.
2.5G Extremely Fast Internet Response: Optimizes gaming with a large boost in speed, latency, and responsiveness; facilitates large game downloads, seamless live streaming, and massive data backups.
Versatile, Multi-Speed Compatibility: Backwards compatible with 2.5 Gbps, 1 Gbps, 100 Mbps, and 10 Mbps Base-T connectivity, allowing smooth upgrades.
QoS Support: Ensures enough bandwidth and avoids network congestion for a smooth web experience.
Wake On LAN: Remotely power on/off your computer for centralized management.
Easy Setup: Simple software installation with the intuitive Utility on the provided CD.
HARDWARE FEATURES
Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x
Interface: 1× PCI Express 2.1 x 1, 1× RJ45 Gigabit/Megabit Port
Network Media: 2.5GBASE-T/1000BASE-T/100BASE-TX
LED: 2.5 Gbps, 1 Gbps, and 100/10 Mbps Link/Act
Data Rates: 10Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps for Half-Duplex mode, 20Mbps, 200 Mbps, 2 Gbps, 5 Gbps, for Full-Duplex mode
Dimensions: 120.8 × 98.2 × 21.5 mm (4.8 × 3.9 × 0.8 in)
Flow Control: 802.3x
OTHERS
Certification: FCC, CE, RoHS
Package Contents: 2.5 Gigabit PCIe Network Adapter (TX201), Standard/Low-Profile Brackets, Quick Installation Guide, Resource CD
System Requirements: Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, Linux
Environment:
Operating Temperature: 0?~40? (32? ~104?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
