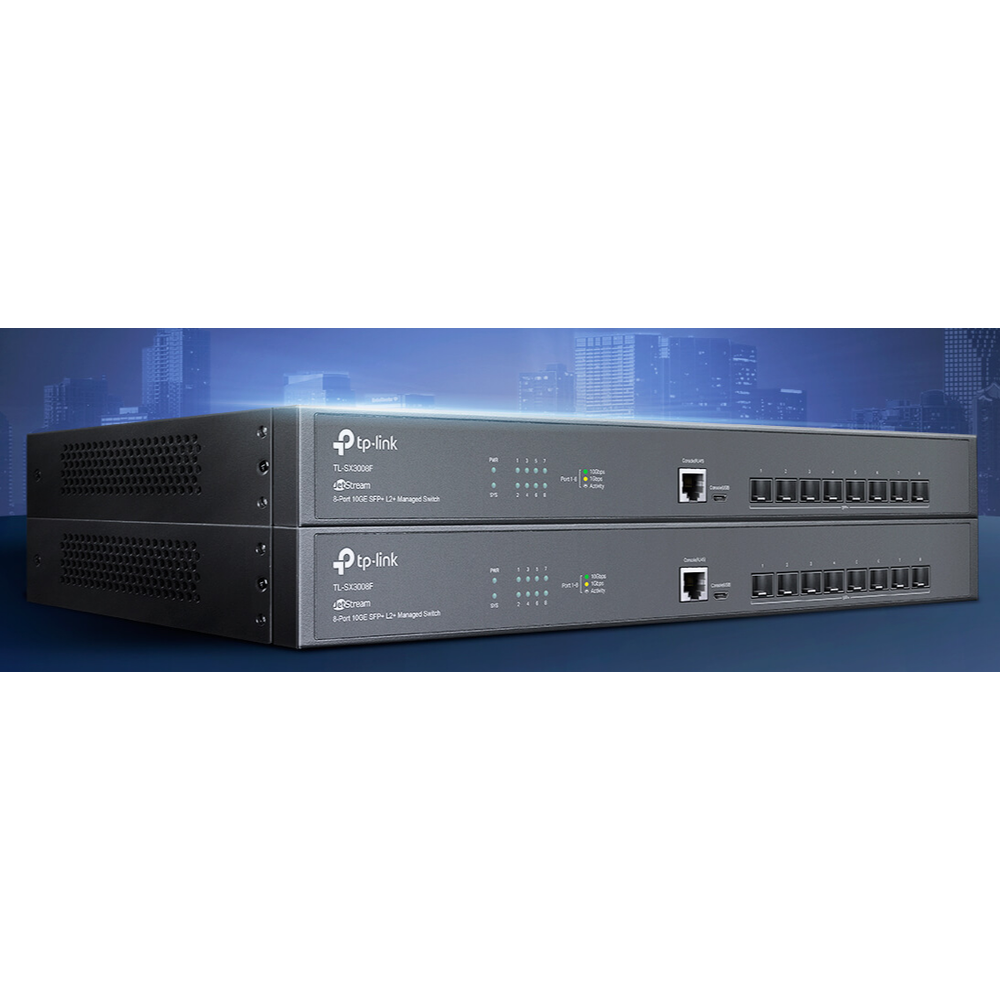

TP-Link SX3008F 8 Port SFP+ 10 Gigabit Switch Steel Case

Future-Proof Your Business with Full 10G Fiber Switch
Build and expand your lightning-fast network with TP-Link TL-SX3008F-a fully managed switch with full 8-port 10G fiber ports and 160 Gbps switching capacity. Ideal for small, medium, and large business networks, it meets and surpasses the needs for high-speed, reliable, and safe enterprise networks.

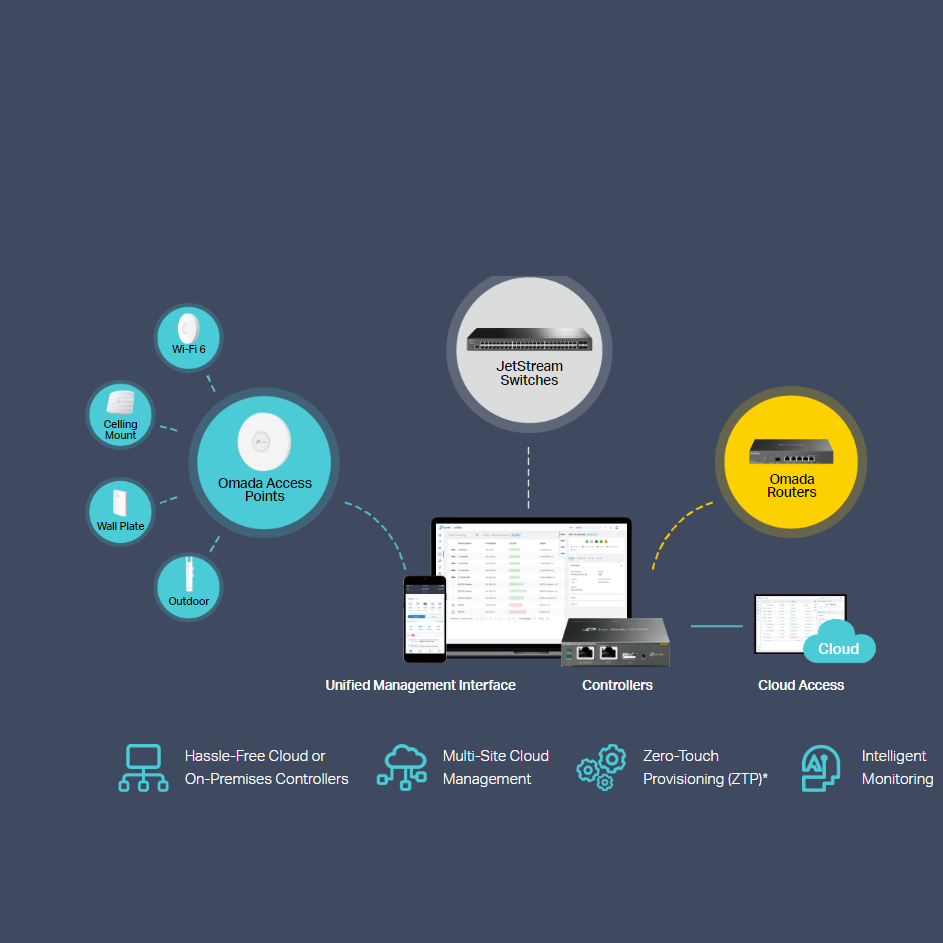

Seamless Integration to Omada Cloud SDN
Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.

Secure Networking
Our high-quality security features defend against a range of network threats. They include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. The Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. User access to the network can be controlled through 802.1X authentication to grant access according to the valid user credentials.

Enterprise Level Features
A complete lineup of L2+ features is supported. 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control are among the innovative features. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to appropriate subscribers and reducing unnecessary traffic, while IGMP throttling & filtering restrict subscribers at the port level to prevent unauthorized multicast access. Static Routing segments the network to route traffic efficiently.

Advanced Quality of Service (QoS)
Voice and video traffic and be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS, voice and video services remain smooth, even in situations of low bandwidth.

ISP Features
Internet Service Providers (ISPs) get the support they need with features including sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM and Device Link Detection Protocol (DLDP) provide straightforward monitoring and troubleshooting of Ethernet links across the entire network.

IPv6 Support
An enormous variety of IPv6 functions guarantees your network will be ready for the Next Generation Network (NGN) without the need to upgrade your hardware. Take advantage of features such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover to enhance your network environment.

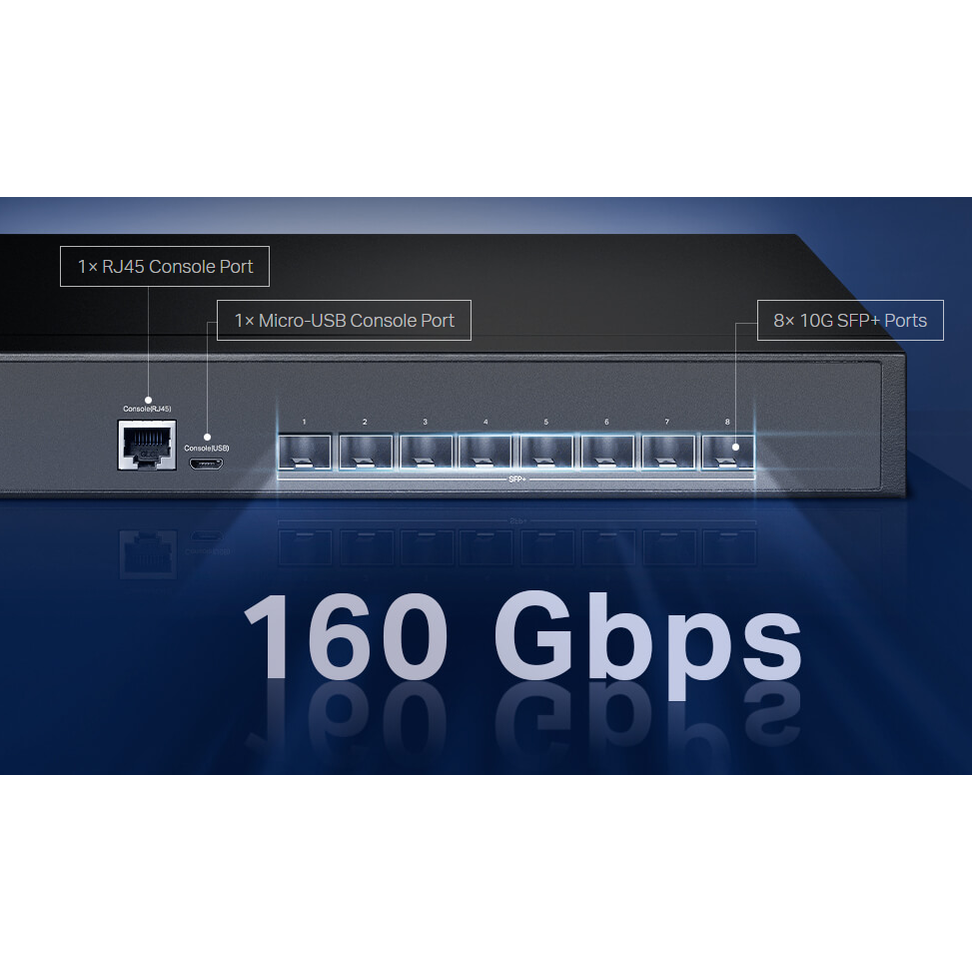

Interface
- 8× 10GE SFP+ Slots
- 1× RJ45 Console Port
- 1× Micro-USB Console Port
Fan Quantity: Fanless
Power Supply: 100-240 V AC~50/60 Hz
Dimensions (W x D x H): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting: Rack Mountable
Max Power Consumption: 15.46 W (220 V / 50 Hz)
Max Heat Dissipation: 52.75 BTU/hr (220 V / 50 Hz)

PERFORMANCE
Switching Capacity: 160 Gbps
Packet Forwarding Rate: 119.04 Mpps
MAC Address Table: 32 K
Jumbo Frame: 9 KB

SOFTWARE FEATURES
Quality of Service:
- 8 priority queues
- 802.1p CoS/DSCP priority
- Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
- Bandwidth Control: Port/Flow based Rating Limiting
- Smoother Performance
- Action for Flows: Mirror (to supported interface), Redirect (to supported interface), Rate Limit, QoS Remark

L2 and L2+ Features:
- Link Aggregation: static link aggregation, 802.3ad LACP, Up to 8 aggregation groups, containing 8 ports per group
- Spanning Tree Protocol: 802.1d STP, 802.1w RSTP, 802.1s MSTP, STP Security: TC Protect, BPDU Filter, Root Protect
- Loopback Detection: Port based, VLAN based
- Flow Control: 802.3x Flow Control, HOL Blocking Prevention
- Mirroring: Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Tx/Rx/Both

L2 Multicast:
- IGMP Snooping: IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, IGMP Authentication
- MLD Snooping: MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast
- MVR
- Multicast Filtering: 256 profiles and 16 entries per profile

VLAN:
- VLAN Group: Max 4K VLAN Groups
- 802.1Q Tagged VLAN
- MAC VLAN: 30 Entries
- Protocol VLAN: Protocol Template 16, Protocol VLAN 16
- Private VLAN
- GVRP
- VLAN VPN (QinQ): Port-Based QinQ, Selective QinQ
- Voice VLAN

Access Control List:
- Time-based ACL
- MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
- IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS, User Priority
- Combined ACL
- Packet Content ACL
- IPv6 ACL
- Policy: Mirroring, Redirect, Rate Limit, QoS Remark
- ACL apply to Port/VLAN

Security:
- IP-MAC-Port Binding: 512 Entries, DHCP Snooping, ARP Inspection, IPv4 Source Guard: 100 Entries
- IPv6-MAC-Port Binding: 512 Entries, DHCPv6 Snooping, ND Detection, IPv6 Source Guard: 100 Entries
- DoS Defend
- Static/Dynamic Port Security: Up to 64 MAC addresses per port
- Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
- 802.1X: Port base authentication, Mac base authentication, VLAN Assignment, MAB, Guest VLAN, Support Radius authentication and accountability
- AAA (including TACACS+)
- Port Isolation
- Secure web management through HTTPS with SSLv3/TLS 1.2
- Secure Command Line Interface (CLI) management with SSHv1/SSHv2
- IP/Port/MAC based access control

IPv6:
- IPv6 Dual IPv4/IPv6
- Multicast Listener Discovery (MLD) Snooping
- IPv6 ACL
- IPv6 Interface
- Static IPv6 Routing
- IPv6 neighbor discovery (ND)
- Path maximum transmission unit (MTU) discovery
- Internet Control Message Protocol (ICMP) version 6
- TCPv6/UDPv6
- IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP

L3 Features:
- 16 IPv4/IPv6 Interfaces
- Static Routing: 48 static routes
- Static ARP: 128 Static Entries
- Proxy ARP
- Gratuitous ARP
- DHCP Server
- DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay, DHCP L2 Relay

Management:
- Web-based GUI
- Command Line Interface (CLI) through the console port, telnet
- SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups)
- SDM Template
- DHCP/BOOTP Client
- 802.1ab LLDP/LLDP-MED
- DHCP AutoInstall
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- EEE
- Password Recovery
- SNTP
- System Log

Advanced Features:
- Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
- ZTP (Zero-Touch Provisioning)*

MIBs:
- MIB II (RFC1213)
- Interface MIB (RFC2233)
- Ethernet Interface MIB (RFC1643)
- Bridge MIB (RFC1493)
- P/Q-Bridge MIB (RFC2674)
- RMON MIB (RFC2819)
- RMON2 MIB (RFC2021)
- Radius Accounting Client MIB (RFC2620)
- Radius Authentication Client MIB (RFC2618)
- Remote Ping, Traceroute MIB (RFC2925)
- Support TP-Link private MIB

OTHERS
Certification: CE, FCC, RoHS
Package Contents: TL-SX3008F Switch, Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet
Environment:
- Operating Temperature: 0-45C (32-113 F)
- Storage Temperature: -40-70C (-40-158 F)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing
