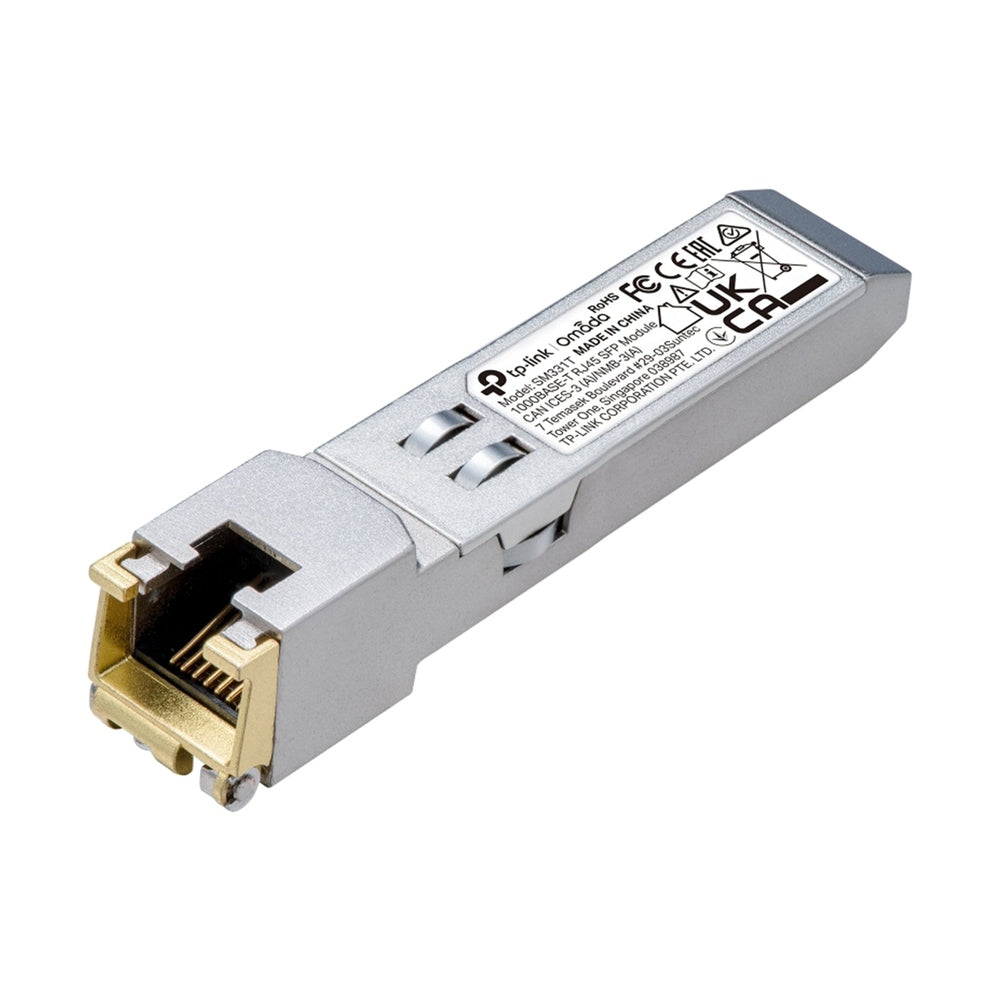

TP-Link SM331T Omada Gigabit RJ-45 to SFP Converter
TP-Link
TP-Link SM331T Omada Gigabit RJ-45 to SFP Converter
**Inventory count is updated overnight**
**ADDITIONAL CHARGES MAY APPLY TO LARGE OR BULKY ITEMS**
**SOME ITEMS MAY REQUIRE SHIPPING QUOTES AND WILL BE CHARGED ONCE QUOTE ACCEPTED**
Support 10/100/1000Base-T Operation in Host Systems
Support TX Disable function
For 100m* Reach Over UTP Cat 5e or above Cable
Hot-Pluggable SFP Footprint Features
Commercial Product Operating Temperature Range: 0-70°C
Compliant with IEEE Std 802.3-2002
Fully Metallic Enclosure for Low EMI
Low Power Dissipation (0.5 W Typical, 0.8 W Max)
*Laboratory data using the Cat5e cable. Actual distance may vary.
Brand: TP-Link
MPN: SM331T
Standards and Protocols: IEEE 802.3-2002
Power Supply: 3.3V
Max. Cable Length: 100m (Cat 5e or above)
Data Rate: 1.25 Gbps
Port Type: 1× 1000 Mbps RJ45 Port
Safety & Emission: FCC, CE
Environment: Operating Temperature: 0-70 ? (32-158 ?), Storage Temperature: -40-85 ? (-40-185 ?)
Hot Swappable: Yes
Dimensions (W x D x H): 2.7*0.5*0.5 in (67.4*13.75*13.8 mm)
