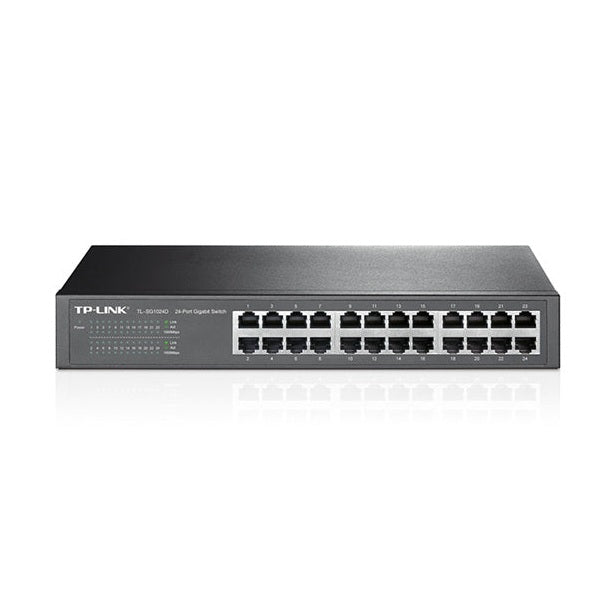

TP-Link SG1024D 24 Port Gigabit Switch Steel Case

24 10/100/1000Mbps ports
Innovative energy-efficient technology saves power consumption
Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
Plug & play design
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
48Gbps Switching Capacity
10KB Jumbo frame improves performance of large data transfers
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Store and forward Switching scheme
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware.
Desktop and Rack-mountable design
Plug and Play design simplifies installation

What This Product Does
The TL-SG1024D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save up to 25% of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation TL-SG1024D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1024D work reliably. It's a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

HARDWARE FEATURES
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface: 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity: Fanless
Dimensions ( W x D x H ): 11.6*7.1*1.7 in. (294*180*44 mm)
Power Consumption: Maximum: 14.6W (220V/50Hz)
Power Supply: 100-240VAC, 50/60Hz

PERFORMANCE
Switching Capacity: 48Gbps
MAC Address Table: 8K
Packet Forwarding Rate: 35.7Mpps
Jumbo Frame: 10KB
Green Technology: Innovative energy-efficient technology saves power up to 25%
Transfer Method: Store-and-Forward

OTHERS
Certification: FCC, CE, RoHS
Package Contents: - 24-Port Gigabit Desktop/Rackmount Switch, - Power Cord, - Installation Guide, - Rackmount Kits, - Rubber Feet
System Requirements: Microsoft Windows XP, Vista, Windows 7 or Windows 8, MAC OS, NetWare, UNIX or Linux.

Environment
Operating Temperature: 0~40 (32~104);
Storage Temperature: -40~70 (-40~158);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing

Product Attributes
Form Factor: 1U Rackmount
10 Gigabit Ports: 0 Ports
10 Gigabit: No
Management Level: Unmanaged
Number of Ports: 24 Ports
PoE: No
PoE Ports: 0 Ports
PoE Budget: N/A
Stacking: No
Uplink Ports: 0
Uplink Speed (Max): None
