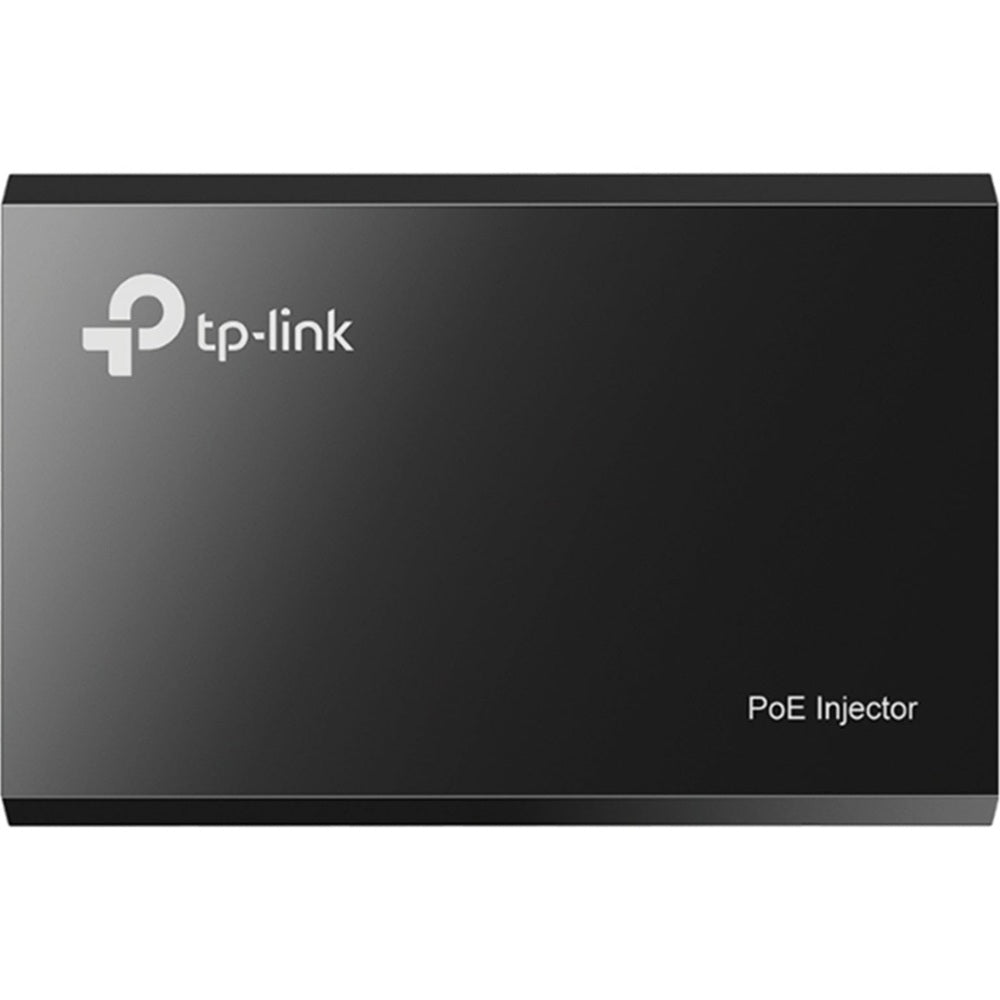

TP-Link PoE150S Power Over Ethernet Injector Adapter
TP-Link
TP-Link PoE150S Power Over Ethernet Injector Adapter
**Inventory count is updated overnight**
**ADDITIONAL CHARGES MAY APPLY TO LARGE OR BULKY ITEMS**
**SOME ITEMS MAY REQUIRE SHIPPING QUOTES AND WILL BE CHARGED ONCE QUOTE ACCEPTED**
TL-POE150S Highlights:
- IEEE 802.3af compliant
- Delivers power up to 100 meters
- Auto-determine the necessary power requirements
- Gigabit speed support
- Plug-and-Play, requires no configuration
- External power adapter supply
HARDWARE FEATURES
Interface
2 10/100/1000Mbps RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
1 48VDC POWER INPUT PORT
Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Dimensions (W X D X H)
3.2*2.1*0.9 in.(80.8*54*24 mm)
LED Indicator
PWR
Power Supply
15.4W (Max. 48VDC)
SOFTWARE FEATURES
Basic Function
Compatible With IEEE 802.3af Compliant PDs
Delivers Power Up To 100 Meters
Auto-Determine The Necessary Power Requirements
OTHERS
Certification
FCC, CE, RoHS
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.
Environment Operating Temperature:
0~40 (32~104)
Storage Temperature:
-40~70 (-40~158)
Operating Humidity:
10%~90% non-condensing
Storage Humidity:
5%~90% non-condensing
