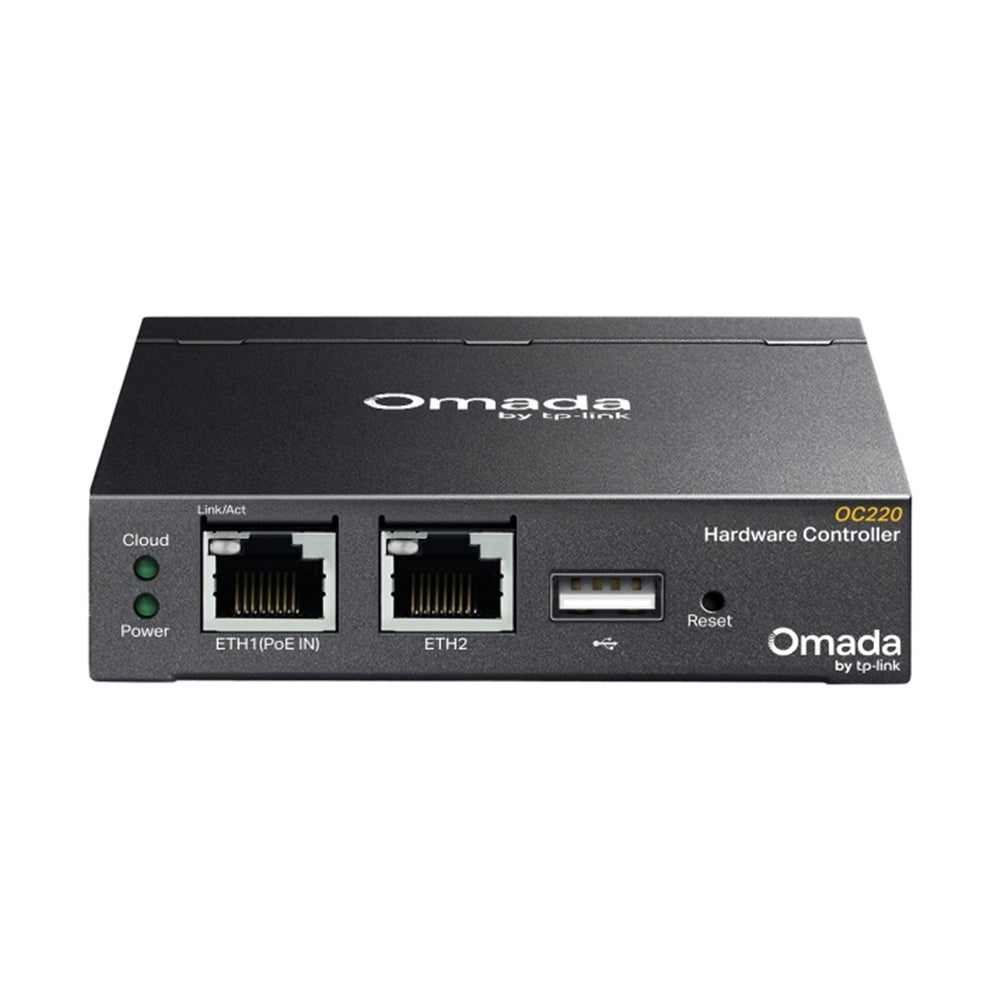

TP-Link OC220 SDN Omada Cloud Controller for WLAN

Omada Hardware Controller
- Centralised Management: Supports up to 100 Omada access points, 10 Omada gateways, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs*
- Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
- On-Premises Management: Locally monitor and manage devices with the ultimate stability and complete privacy.
- Hardware Design for Businesses: Features a powerful chipset, durable metal casing, USB 2.0 port for data backup, and two Gigabit Ethernet ports.
- Flexible Deployment: Powered via 802.3af PoE or Micro USB (DC 5V/Minimum 1A) with a compact desktop or wall mount installation.

HARDWARE FEATURES
Interface
- 2× Gigabit Ethernet Ports
- 1× USB 2.0 Port
- 1× Micro USB Port
Power Supply
- 802.3af PoE
- Micro USB(DC 5V/Minimum 1A)
Dimensions ( W x D x H )
3.9×3.9×1.0 in (100×98×25 mm)
Management Features
Omada App: Yes
Centralized Management
- 100 Omada access points
- 10 Omada gateways
- A maximum of 20 Omada switches*
- A maximum of two select DeltaStream GPON OLTs*
Cloud Access: Yes
L3 Management: Yes
Multi-site Management: Yes
Management Features
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
- Captive Portal Configuration
OTHERS
Certification: CE, FCC, RoHS
Package Content
- Omada Hardware Controller OC220
- Quick Installation Guide
- RJ45 Ethernet Cable
System Requirements: Windows 7/8/10/11, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Environment
- Operating Temperature: -5-50 ? (23-122 ?)
- Storage Temperature: -40-70 ? (-40-158 ?)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing
