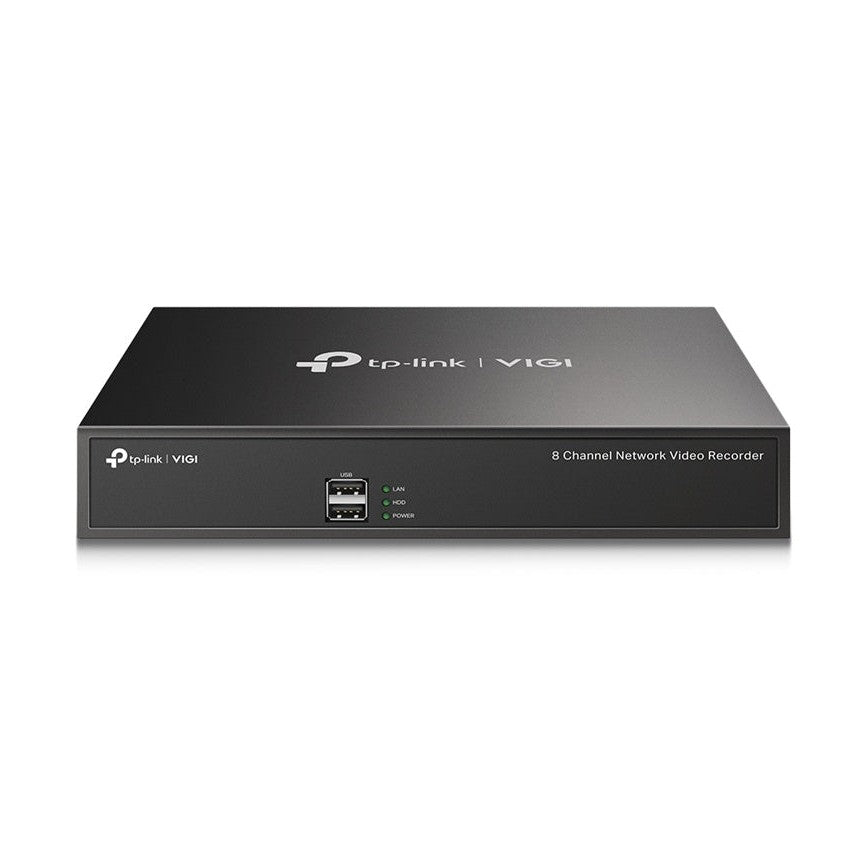

TP-Link NVR1008H 8 Channel Recorder (no HDD)

Security Never Shuts Down - 8 Channel Network Video Recorder

24/7 Continuous Recording: Automatically stores up to 10 TB of footage from connected cameras for quick, convenient access.

8-Channel Real-Time Live View: Sharp image definition up to 5MP and an 8 channel display ensures every detail is captured from every angle.

4-Channel Simultaneous Playback: Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage. (Fewer or no channels may be available for playback if the total resolution is greater than 5MP.)

Remote Monitoring: Dedicated VIGI app developed for remote monitoring, providing ease and convenience.

H.265+: Transmits compressed crystal-clear video without using extra bandwidth to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Onvif Ensure Compatibility: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. (VIGI NVR works best with VIGI cameras but is compatible with other brands.)

1 HDD Interface (up to 10 TB)*: Stores up to 10 TB (720 days** of video) on a SATA hard drive, keeping your data storage secured locally.
*A hard disk drive (not included) must be installed for operation.
**Calculations based on laboratory testing using a 3MP VIGI camera. Actual performance may vary according to the amount of activity recorded, resolution, and other variables.

Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

80 Mbps Video Access Bandwidth: High video access bandwidth ensures your NVR connects more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can connect up to eight 4MP cameras.

NETWORK
Protocol: TCP/IP, DHCP, DNS, NTP, UPnP
Incoming Bandwidth: 80 Mbps
Outgoing Bandwidth: 60 Mbps

GENERAL
Operating Temperature: -10-55 °C
Chassis: 1U Chassis
Dimensions( H X W X D ): 246.2 mm x 148.2 mm x 42.6 mm
Weight: 578.5 g
External Power Supply: 12V DC, no more than 18 W
Power Consumption: 4.25 W (without disk), 13.10 W (with disk)

VIDEO/IMAGE
Video Input: 8-Channel IP Video Input, up to 5 MP Resolution
Video Output:
Recording Resolution: 5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI/VGA Output Resolution: 1920 x 1080p/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1680 x 1050/60Hz, 1440 x 900/60Hz

DECODING
Decoding Format: H.265+/H.265/ H.264+/H.264
Live View/Playback Resolution: 5 MP/ 4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback: 4 Channel (Fewer or no channels may be available for playback if the total resolution is greater than 5MP.)
Capability: 1-ch @ 5MP, 2-ch @ 2MP, 4-ch @ 720p

HARD DISK
SATA: 1 SATA Interface
Capacity: Up to 10 TB

INTERFACES
Network Interface: 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface: 2 x USB 2.0
