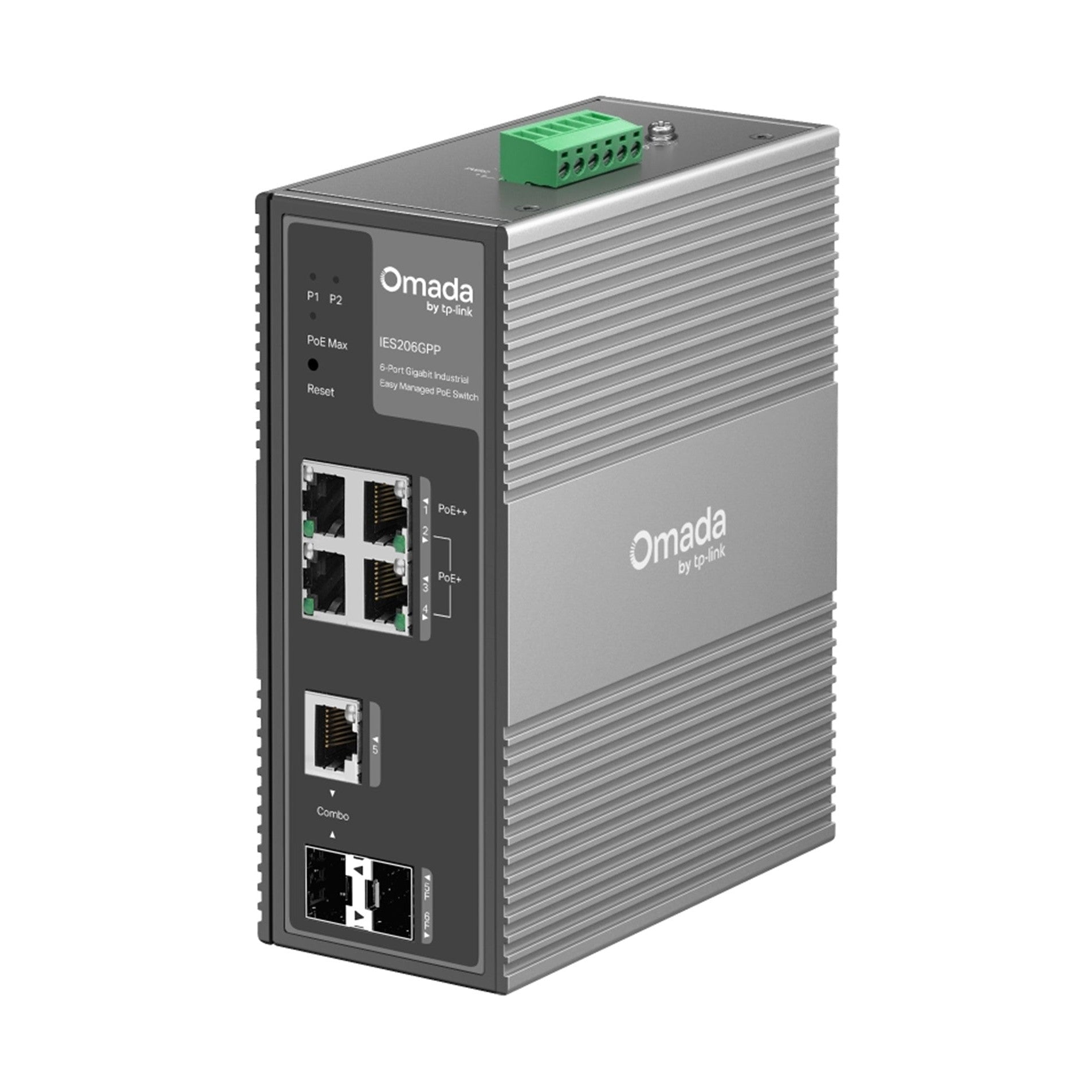

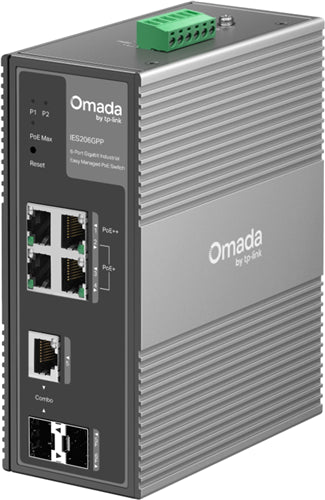

TP-Link IES206GPP Industrial 6-Port PoE Switch

Omada 6-Port Gigabit Industrial Easy Managed Switch with 3-Port PoE+ and 1-Port PoE++
- 4× Gigabit RJ45 Ports (1× PoE++, 3× PoE+)
- 1× Gigabit Combo RJ45/SFP Slot, 1× Gigabit SFP Slot
- 120W Power Budget* with up to 60W for PoE++ Port
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: Up to 820ft (250m) PoE,** VLAN, QoS, and STP/RSTP
- Centralised Cloud Management via the Web or Omada App†
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design

HARDWARE FEATURES
Interface
- 1× 10/100/1000 Mbps PoE++ RJ45 Ports
- 3× 10/100/1000 Mbps PoE+ RJ45 Ports
- 1× Gigabit SFP/RJ45 Combo Slot
- 1× Gigabit SFP Slot
- Auto-Negotiation/Auto MDI/MDIX
Fan Quantity: Fanless
Installation: DIN-rail mounting, Wall mounting
Physical Security Lock: Yes
Power Supply: 12-57V 1+1 Redundant DC Power Input
PoE Ports (RJ45)
- Standard: 802.3af/at/bt compliant
- PoE++ Ports (802.3af/at/bt PoE): 1 Port, up to 60W per port
- PoE+ Ports (802.3af/at PoE): 3 Ports, up to 30W per port
- PoE Budget:
- 60W (Input: 12V / 7.0A - 21V / 3.5A))
- 120W (Input: 21V / 6.5A - 57V / 2.3A)
Dimensions ( W x D x H ): 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm)
Surge Protection
- ±6 kV in common mode for Ethernet ports
- ±4 kV in common mode for DC power input ports
PERFORMANCE
Switching Capacity: 12 Gbps
Packet Forwarding Rate: 8.93 Mpps
MAC Address Table: 8K
Packet Buffer Memory: 4 Mbit
Jumbo Frame: 15 KB
SOFTWARE FEATURES
Quality of Service
- 802.1p DSCP Priority
- 8 Priority Queues
- Priority Schedule Mode
- WRR (Weighted Round Robin)
- Queue Weight Config
- Bandwidth Control
- Port-Based Rate Limit
- Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control
L2 Features
- Link Aggregation
- Static Link Aggregation
- Up to 2 aggregation groups and up to 4 ports per group
- Loopback Detection
- Flow Control
- 802.3x Flow Control
- Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
- Port Statistics
- Port Mirror Status
- Traffic Statistics
- 802.1ab LLDP
- Spanning Tree
- STP (802.1d)
- RSTP (802.1w)
L2 Multicast
- IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN
- MTU VLAN
- Port-Based VLAN
- 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method: Store-And-Forward
Management Features
Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller
Management Features
- Web-based GUI
- DHCP Client
- Cable Diagnostics
- Digital Diagnostic Monitoring (DDM)
- Automatic Device Discovery†
- Batch Configuration†
- Batch Firmware Upgrading†
- Unified Configuration†
OTHERS
Certification: FCC, CE, RoHS
Package Content
- IES206GPP
- DIN-Rail Mounting Bracket
- Wall-Mounting Plates
- Installation Guide
Environment
- Operating Temperature: -40℃~75℃ (-40℉~167℉)
- Storage Temperature: -40℃~85℃ (-40℉~185℉)
- Operating Humidity: 5%~95% non-condensing
- Storage Humidity: 5%~95% non-condensing
