TP-Link ES205G 5 Port Gigabit Omada SDN Switch

Omada 5-Port Gigabit Easy Managed Switch
- 5× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app†
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design

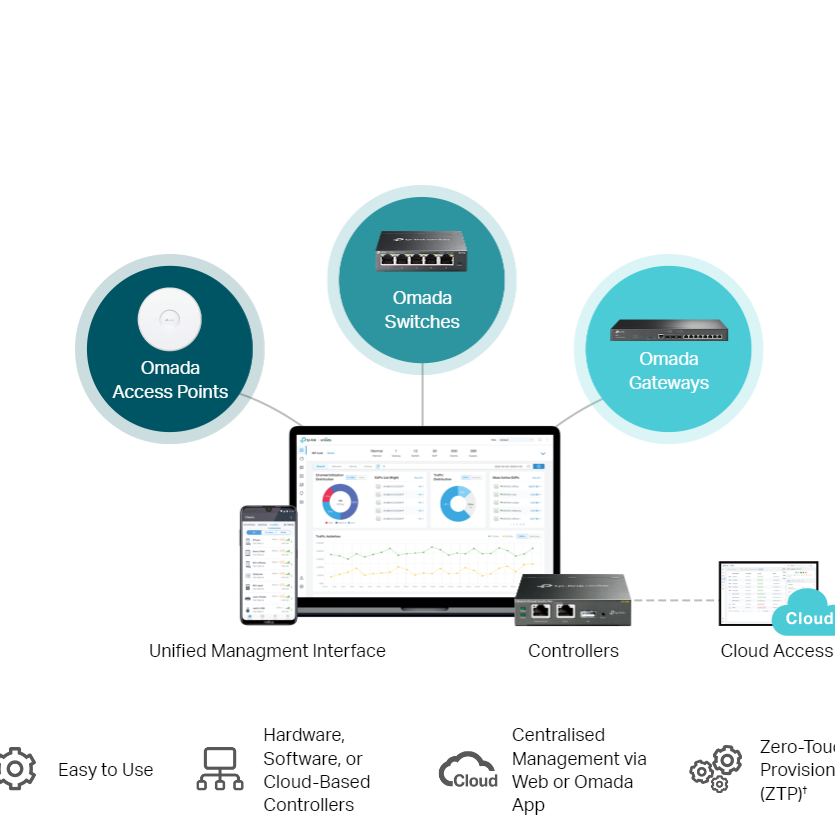

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

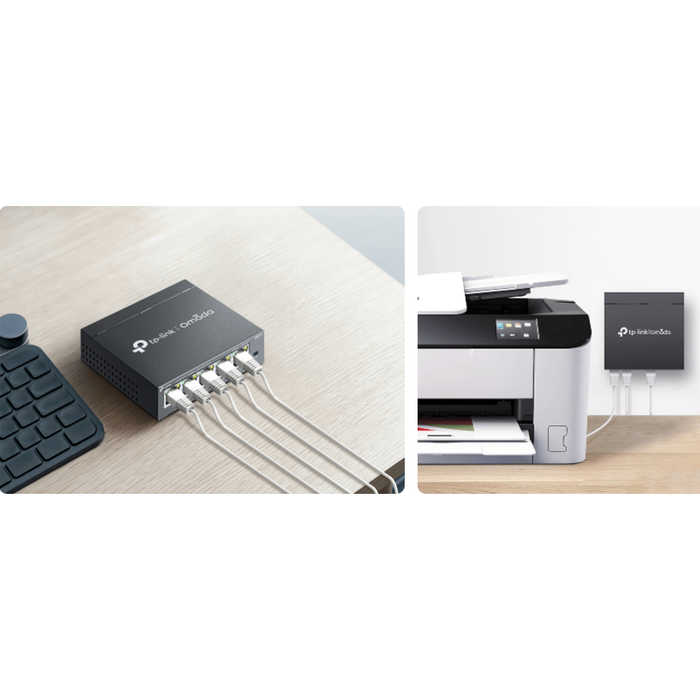

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design

HARDWARE FEATURES
Interface: 5× 10/100/1000 Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
Fan Quantity: Fanless
Installation: Desktop, Wall Mount
Physical Security Lock: Yes
Power Supply: External DC Power Adapter (Output: 5 VDC/ 0.6 A)
Dimensions (W x D x H): 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)

PERFORMANCE
Switching Capacity: 10 Gbps
Packet Forwarding Rate: 7.4 Mpps
MAC Address Table: 8 K
Packet Buffer Memory: 4 Mbits
Jumbo Frame: 15 KB

SOFTWARE FEATURES
Quality of Service: Port-based/802.1p/DSCP QoS, 8 Priority Queues, Priority Schedule Mode, WRR (Weighted Round Robin), Queue Weight Config, Bandwidth Control, Port-Based Rating Limit, Storm Control, Multiple Control Modes (kbps/pps), Broadcast/Multicast/Unknown-Unicast Control?
L2 Features: Static Link Aggregation, Loop Prevention / Loopback Detection, Flow Control, 802.3x Flow Control, Mirroring, Port Mirroring, One-to-One, Many-to-One, Ingress/Egress/Both, Port Statistics, Port Mirror Status, Traffic Statistics, 802.1ab LLDP
L2 Multicast: IGMP Snooping, IGMP v1/v2/v3 Snooping, Fast Leave
VLAN: MTU VLAN, Port-Based VLAN, 802.1Q Tag VLAN, Max 32 VLAN Groups, 4K VID
Transmission Method: Store-And-Forward

MANAGEMENT
Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller
Management Features: Web-based GUI, DHCP Client, Cable Diagnostics, Automatic Device Discovery†, Batch Configuration†, Batch Firmware Upgrading†, Unified Configuration†

OTHERS
Certification: FCC, CE, RoHS
Package Contents: ES205G, Power Adapter, Installation Guide, Rubber Feet
Environment: Operating Temperature: 0?~40? (32?~104?), Storage Temperature: -40?~70? (-40?~158?), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing
