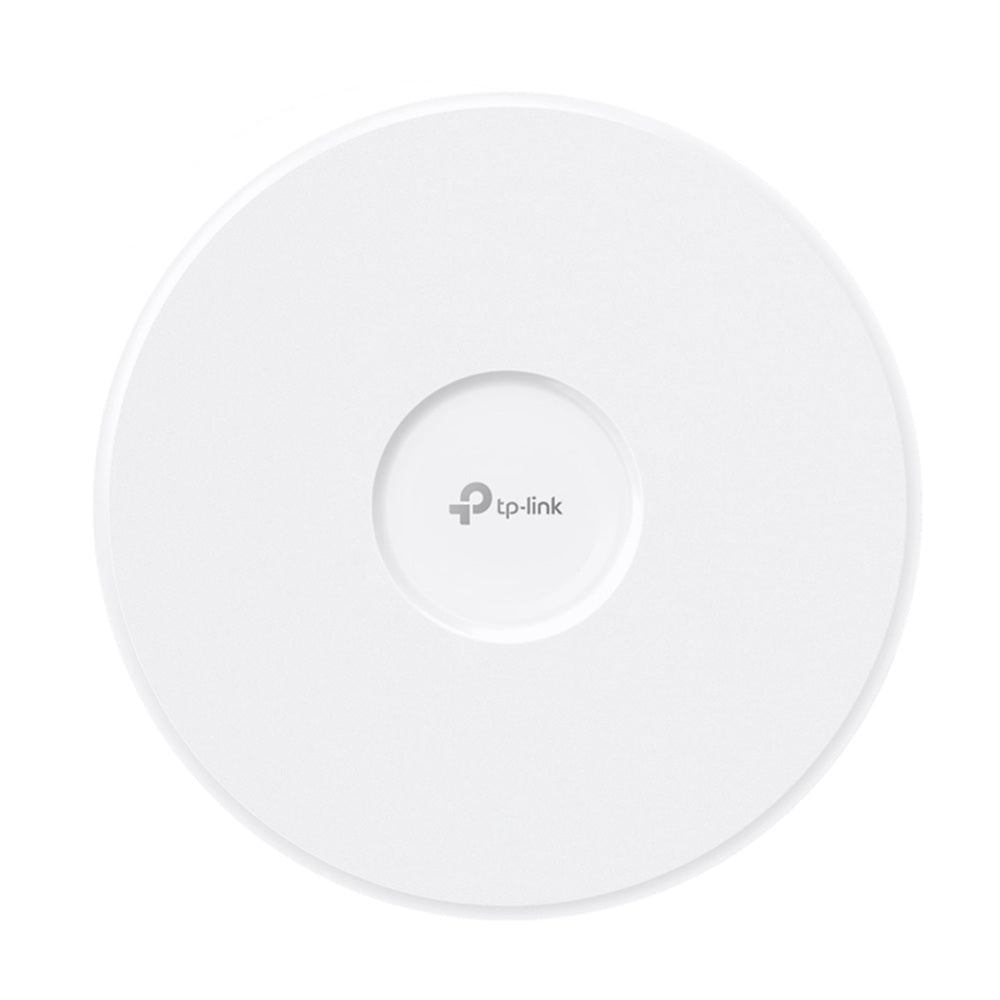

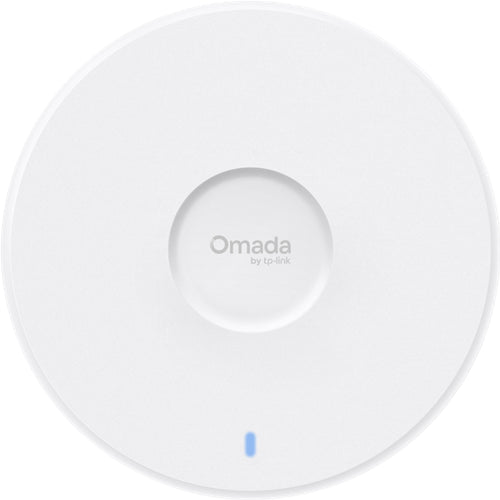

TP-Link EAP773 BE9300 Wi-Fi 7 Omada Ceiling AP

EAP773 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
- BE9300 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.
- 1x 10G Port: Unlock the full potential of Wi-Fi 7.
- Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
- 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.
- Low Latency and Interference: Multi-Link Operation, and Multi-RUs ensure high performance of your network.
- Advanced Functions: Supports centralized management, mesh, and AI roaming.

Ultra-Thin Enterprise WiFi 7 Access Point to Redefine Your Business Network
- BE9300 WiFi 7 Speed: Supports up to 9214 Mbps for a bufferless network of your offices or retails.
- Next-Gen WiFi 7: Enjoy a smooth network with higher throughput and lower interference.
- Multi-Link Operation (MLO): Enables devices to simultaneously send and receive data across different frequency bands and channels.
- 10G PoE++ Port: Boosts overall throughput and offers flexible deployment with a 10 Gbps PoE++ port.
- Auto Channel Selection and Power Adjustment: Boost WiFi performance and minimize interference for your network.
- Intelligent Power Management: Offers more reliable network operation for your business.
- Centralized Cloud Management: Manage the whole network locally or from the cloud.
- Omada Mesh Technology: More flexible and convenient wireless deployment.
- Ultra-Thin Design: F220 mm x 32.5 mm elegant design brings more flexibility.

Wi-Fi 7: Swifter, Smoother, Stronger - Supersized Throughput for Better Experiences
- With the brand-new 6 GHz band open to applications, WiFi 7 supports extending channel width to 320 MHz. Compared to WiFi 6/6E, the doubled channel bandwidth of 6 GHz offers many more simultaneous transmissions at the fastest possible speeds. Making full use of these new resources, the throughout of EAP773 reaches up to 11 Gbps.

Higher Capacity for Increased Traffic Demands
- WiFi 7 supports 4096-QAM with 12 bits rather than WiFi 6's 10 bits. The updated modulation method enables each signal to carry more dense amounts of data. Equipped with advanced 4096-QAM, EAP773 empowers your business to meet ever-growing traffic demands from high-bandwidth applications, such as remote offices, HD video conferencing, and cloud-based applications.

Lower Latency for Boosted Network Reliability
- EAP773 allows network devices to communicate across multiple bands and channels simultaneously thanks to Multi-Link Operation (MLO). Additionally, Multi Resource Units (Multi-RUs) open up previously wasted channels. More bands can be used concurrently to share redundant data, and the interference will be blocked to improve reliability.

Optimized Wired Performance with 10G PoE++ Port
- With a 10 Gigabit Ethernet Port, EAP773 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3bt PoE is ideal for flexible deployment in large-scale scenes such as offices, schools, and hotels.

Auto Channel Selection and Power Adjustment
- Provide powerful wireless performance while greatly reducing Wi-Fi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Seamless Integration into Omada SDN
- The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network-all controlled from a single interface. Experience total control at your fingertips.
- Hardware, Software, or Cloud-Based Controllers
- Centralized Cloud Management
- Intelligent Monitoring
- Zero-Touch Provisioning (ZTP)

Boosted Network Security
- Secure Guest Network with up to 24 SSIDs: Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
- Boost Your Business with SMS Login: Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.
- WPA3 for Worry-Free Open Public Networks: With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.
- Rogue AP Detection: Detect and mitigate rogue access points to protect your business network from security holes or other threats anywhere, anytime.

Ultra-Thin Design for Flexible Deployment
- The overall design of EAP773 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.

HARDWARE FEATURES
Interface: 1× 10G Ethernet Port
Button: Reset
Power Supply: 802.3bt PoE or 12V/2.5A DC
Power Consumption:
- 25.94 W (802.3bt, full functionality);
- 22.57 W (12/2.5A, full functionality);
- 23.4 W (802.3at decrease 6GHz Power);
- 10.1. W (802.3af, radio off, only main chip and LAN working)
Dimensions (W x D x H): 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna Type:
- 2.4 GHz: 2× 3.0 dBi
- 5 GHz: 2× 3.0 dBi
- 6 GHz: 2× 3.0 dBi
Bluetooth: 1 × 4.0 dBi, Bluetooth 5.2
Mounting: Ceiling / Wall Mounting (Kits Included)

WIRELESS FEATURES
Wireless Client Capacity:
- 2 GHz: 128
- 5 GHz: 128
- 6 GHz: 128
Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
Frequency: 6 GHz, 5 GHz, and 2.4 GHz
Signal Rate: 574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz)
Wireless Functions:
- MLO
- 4K-QAM
- MU-MIMO
- HE320
- Mesh
- BBS Coloring
- OFDMA
- Load Balance
- Band Steering
- Beamforming
- Airtime Fairness
- Multiple SSIDS: 24 (8 on each band)
- Wireless Schedule
- Reboot Schedule
- QoS(WMM)
- Rate Limit
- Static IP/Dynamic IP
- RADIUS Accounting
- MAC Authentication
Wireless Security:
- Captive Portal Authentication
- Access Control
- Maximum number of MAC Filter: 4,000
- Wireless Isolation Between Clients
- VLAN
- Rogue AP Detection
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power:
- < 25 dBm (2.4 GHz)
- < 25 dBm (5 GHz)
- < 23 dBm (6 GHz)

MANAGEMENT
Omada App: Yes
Centralized Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
Cloud Access: Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog: Yes
Web-based Management: Yes

OTHERS
Certification: CE, FCC, RoHS, IC
Package Contents:
- EAP773
- Installation Guide
- Ceiling/Wall Mounting Kits
Note: Power Adapter is NOT included.
Environment:
- Operating Temperature: 0 °C-40 °C (32 °F-104 °F);
- Storage Temperature: -40 °C-70 °C (-40 °F-158 °F);
- Operating Humidity: 10%-90% non-condensing;
- Storage Humidity: 5%-90% non-condensing;
