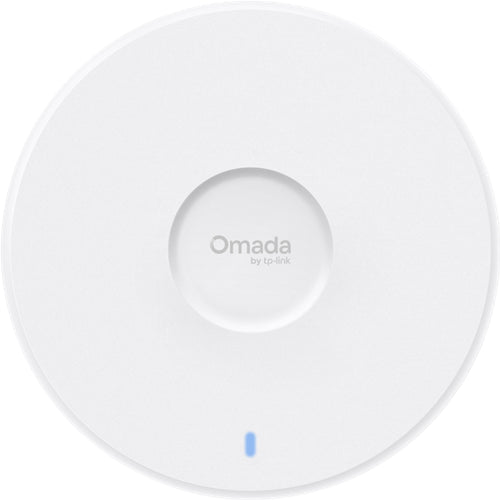

TP-Link EAP772 BE9300 Wi-Fi 7 Omada Ceiling AP

BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
- BE11000 Tri-Band Wi-Fi 7 (5760 Mbps on 6 GHz + 4320 Mbps on 5 GHz + 574 Mbps on 2.4 GHz).†
- A clear 6 GHz band brings cleaner and wider band resources.‡
- 1× 2.5G Port unlocks the full potential of Wi-Fi 7.
- 320 MHz bandwidth enables many more simultaneous transmissions.‡
- Multi-Link Operation and Multi-RUs ensure the high performance of your network.‡
- Advanced Functions: Centralized management, mesh, and AI roaming.?

Ultra-Thin Design for Flexible Deployment
The overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.

HARDWARE FEATURES
Interface: 1× 2.5G Ethernet Port
Button: Reset
Power Supply: 802.3at PoE or 12V/2.5A DC
Power Consumption: 25.44 W (For PoE); 22.57 W (For DC)
Dimensions (W x D x H): 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna Type:
- 2.4 GHz: 2× 4.0 dBi
- 5 GHz: 2× 5.0 dBi
- 6 GHz: 2× 5.0 dBi
Bluetooth: 1 × 4.0 dBi, Bluetooth 5.2
Mounting: Ceiling / Wall Mounting (Kits Included)

WIRELESS FEATURES
Wireless Client Capacity: 380+
Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
Frequency: 6 GHz, 5 GHz, and 2.4 GHz
Signal Rate: 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)†
Wireless Functions:
- MLO‡
- 4K-QAM‡
- Seamless Roaming(802.11k/v/r)
- MU-MIMO‡
- EHT320‡
- Mesh?
- BSS Coloring‡
- OFDMA‡
- Load Balance
- Band Steering
- Beamforming
- Airtime Fairness
- Multiple SSIDS: 24 (8 on each band)
- Wireless Schedule
- Reboot Schedule
- QoS(WMM)
- Rate Limit
- Static IP/Dynamic IP
- RADIUS Accounting
- MAC Authentication
Wireless Security:
- Captive Portal Authentication?
- Access Control
- Maximum number of MAC Filter: 4,000
- Wireless Isolation Between Clients
- VLAN
- Rogue AP Detection
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power:
- < 25dBm (2.4GHz)
- < 25dBm (5GHz)
- < 23dBm (6GHz)

MANAGEMENT
Omada App: Yes
Centralized Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
Cloud Access: Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog: Yes
Web-based Management: Yes

OTHERS
Certification: CE, FCC, RoHS, IC
Package Contents:
- EAP772
- Installation Guide
- Ceiling/Wall Mounting Kit
Note: Power Adapter is NOT included.
Environment:
- Operating Temperature: 0 °C-40 °C (32 °F-104 °F);
- Storage Temperature: -40 °C-70 °C (-40 °F-158 °F);
- Operating Humidity: 10%-90% non-condensing;
- Storage Humidity: 5%-90% non-condensing;
