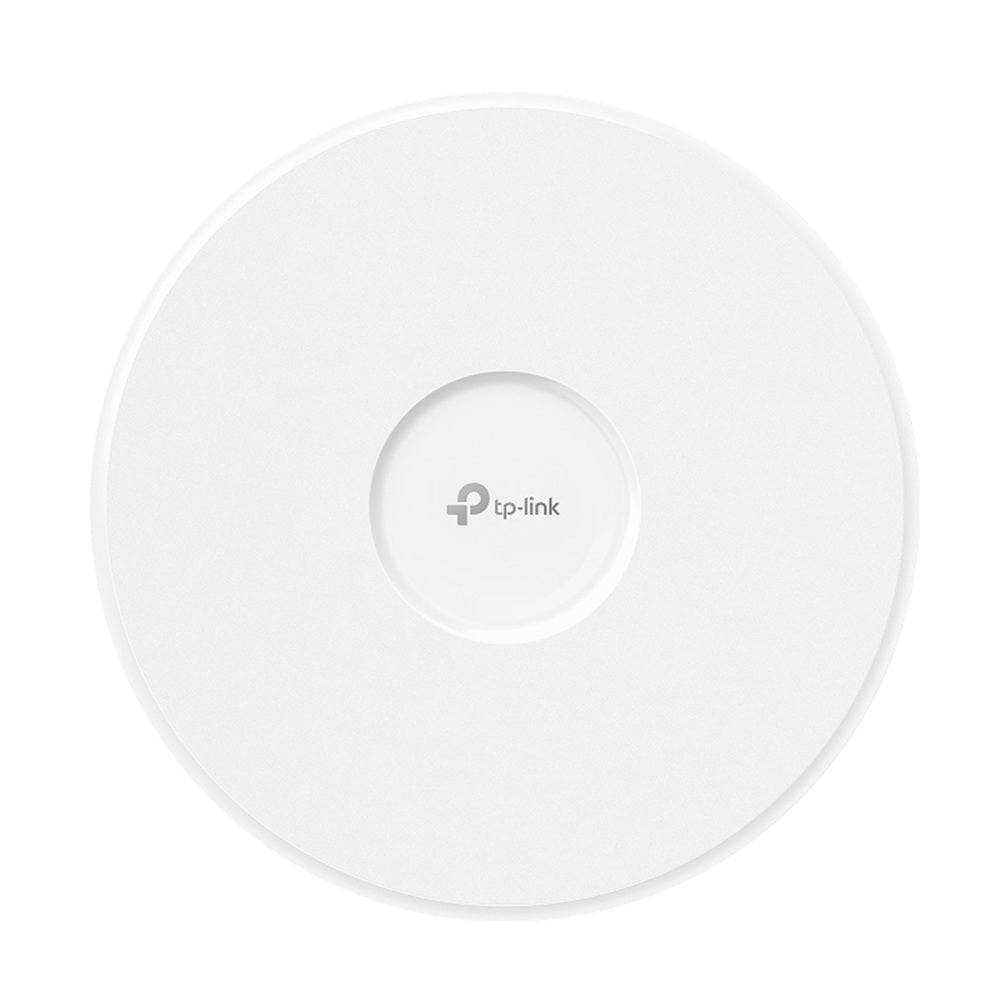

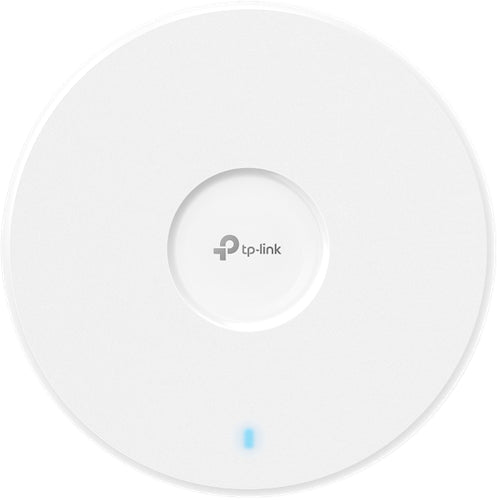

TP-Link EAP723 BE3600 Wi-Fi 7 Omada Ceiling AP

BE3600 Ceiling Mount Wi-Fi 7 Access Point
- BE3600 Dual-Band Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).
- 1× 2.5G port unlocks the full potential of Wi-Fi 7.
- 160 MHz bandwidth enables many more simultaneous transmissions.
- Multi-RUs ensure the high performance of your network.
- Advanced Functions: Centralised management, Mesh, and Seamless Roaming.

Wi-Fi 7: Swifter, Smoother, Stronger

Optimised Wired Performance with 2.5G PoE+ Port
With a 2.5 Gigabit Ethernet Port, EAP723 delivers remarkable multi-gigabit performance for higher bandwidth and faster Wi-Fi. Compatibility with 802.3at PoE is ideal for flexible deployment.

Seamless Integration into the Omada SDN

HARDWARE FEATURES
Interface: 1× 2.5G Ethernet Port
Button: Reset
Power Supply: 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)
Power Consumption: 18.6 W (For PoE); 16.0 W (For DC)
Dimensions (W x D x H): 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)
Antenna Type: 2.4 GHz: 2× 4.0 dBi; 5 GHz: 2× 5.0 dBi
Mounting: Ceiling / Wall Mounting (Kits Included)

WIRELESS FEATURES
Coverage: 140㎡(1500 ft²)
Wireless Client Capacity: 250+
Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
Frequency: 2.4 GHz and 5 GHz
Signal Rate: 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
Wireless Functions: 4K-QAM, Seamless Roaming, MU-MIMO, EHT160, Mesh, OFDMA, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDS:16(8 on each band), Wireless Schedule, Reboot Schedule, QoS(WMM), Rate Limit, Static IP/Dynamic IP, RADIUS Accounting, MAC Authentication
Wireless Security: Captive Portal Authentication, Access Control, Maximum number of MAC Filter: 4,000, Wireless Isolation Between Clients, VLAN, Rogue AP Detection, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power: < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz, band 1&band 2, EIRP); < 28 dBm (5 GHz, band 3, EIRP)

MANAGEMENT
Omada App: Yes
Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
Cloud Access: Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog: Yes
Web-based Management: Yes

OTHERS
Certification: CE, FCC, RoHS, IC
Package Contents: EAP723, Installation Guide, Ceiling/Wall Mounting Kit
Environment: Operating Temperature: 0 °C-40 °C (32 °F-104 °F); Storage Temperature: -40 °C-70 °C (-40 °F-158 °F); Operating Humidity: 10%-90% non-condensing; Storage Humidity: 5%-90% non-condensing;
