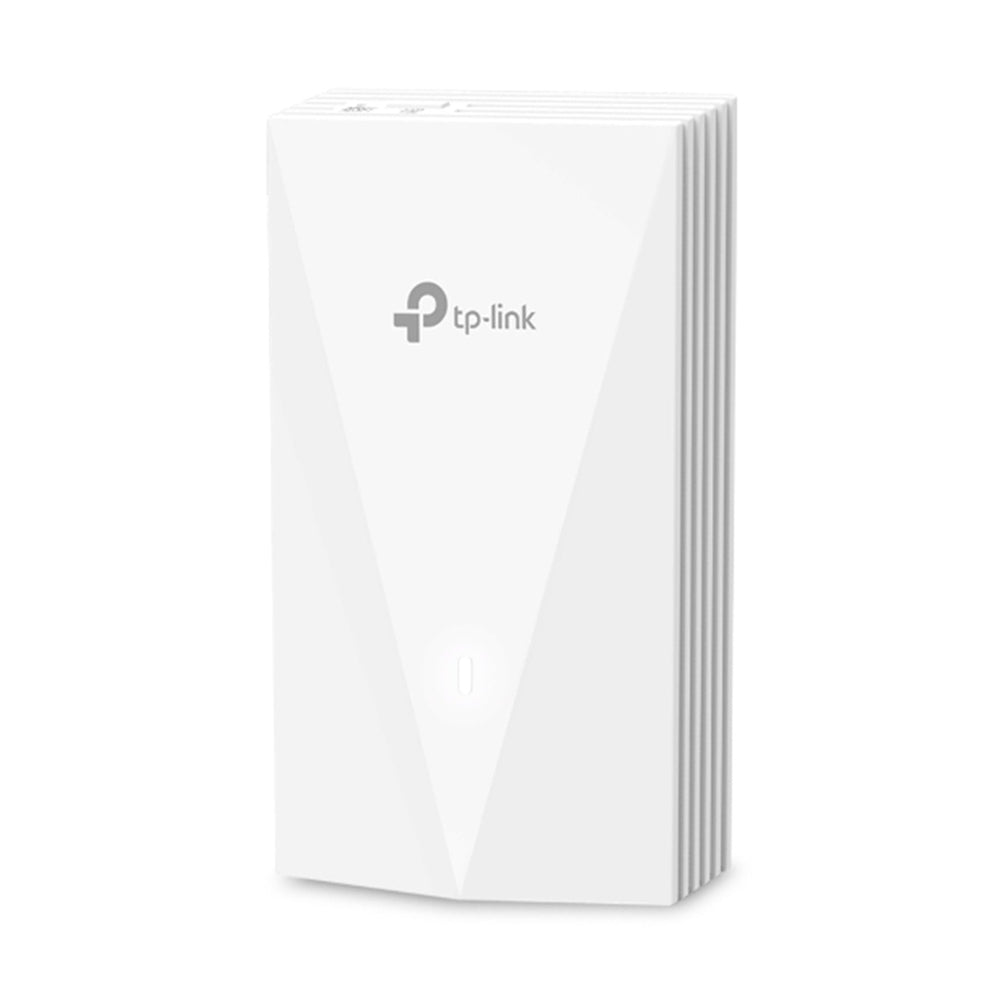

TP-Link EAP655 Wi-Fi 6 AX3000 Wall Plate AP

Lightning-Fast AX3000 WiFi 6 Speeds: WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity. Enjoy more than twice the speed of WiFi 5 with new-era business WiFi 6 with speeds up to 2976 Mbps.

Better User Experience with High-Performance WiFi 6 Connectivity: The latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency.

More than Speed, Security Matters: Safeguard your network against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks.

Full Gigabit Ports to Bridge Network: Wired devices like VoIP phones can be powered with no need for extra electrical cables. The four data ports (1 uplink + 3 downlinks) transfer data at multiple gigabits, allowing you to connect several devices to your gigabits network. One of the downlink ports offers PoE pass-through to eliminate the need for that extra power port.

Effortless Deployment with PoE Powered: With 802.3af/802.3at PoE support, there's no need for more wiring. Plug it into the existing Ethernet cables, and you're ready.

Quick, Simplified Installation: With an easy-to-install design, there is no need to bring someone in to install our EAP.

Auto Channel Selection and Power Adjustment to Optimize Overall Performance: Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Seamless Integration into Omada SDN: The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network-all controlled from a single interface.

Easy Management with the Omada App: Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of your mobile device.

HARDWARE FEATURES
Interface: Uplink: 1× 10/100/1000 Mbps Ethernet Port, Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE out, and the PoE out feature requires 802.3at PoE+ input.)
Physical Security Lock: No
Button: Reset, LED
Power Supply: 802.3af/at PoE
Dimensions: 143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in)
Antenna: 2 Dual-Band Antennas (2.4 GHz: 2× 3 dBi, 5 GHz: 2× 5 dBi)
Mounting: Wall Plate Mounting (Kits included)

WIRELESS FEATURES
Concurrent Clients: 100+
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4 GHz and 5 GHz
Signal Rate: 5 GHz: Up to 2402 Mbps, 2.4 GHz: Up to 574 Mbps
Wireless Functions: 16 SSIDs (Up to 8 SSIDs on each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Seamless Roaming§, Beamforming, Rate Limit, Load Balance, Airtime Fairness, Band Steering, Reboot Schedule, Wireless Schedule, RADIUS Accounting, MAC Authentication, Wireless Statistics, Static IP/Dynamic IP
Wireless Security: Captive Portal Authentication§, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, VLAN, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power: CE: <20 dBm (2.4GHz, EIRP), <23 dBm (5GHz band1 & 2, EIRP), <26 dBm (5GHz band3, EIRP); FCC: < 21 dBm (2.4 GHz), < 21 dBm (5 GHz)

MANAGEMENT
Omada App: Yes
Centralized Management: Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller, Omada Cloud-Based Controller
Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog: Local/Remote Syslog
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS
Certification: FCC, RoHS
Package Contents: AX3000 Wall Plate WiFi 6 Access Point EAP655-Wall, Installation Guide, Mounting Kits
System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment: Operating Temperature: 0-40 ? (32-104 ?), Storage Temperature: -40-70 ? (-40-158 ?), Operating Humidity: 10-90% RH non-condensing, Storage Humidity: 5-90% RH non-condensing
