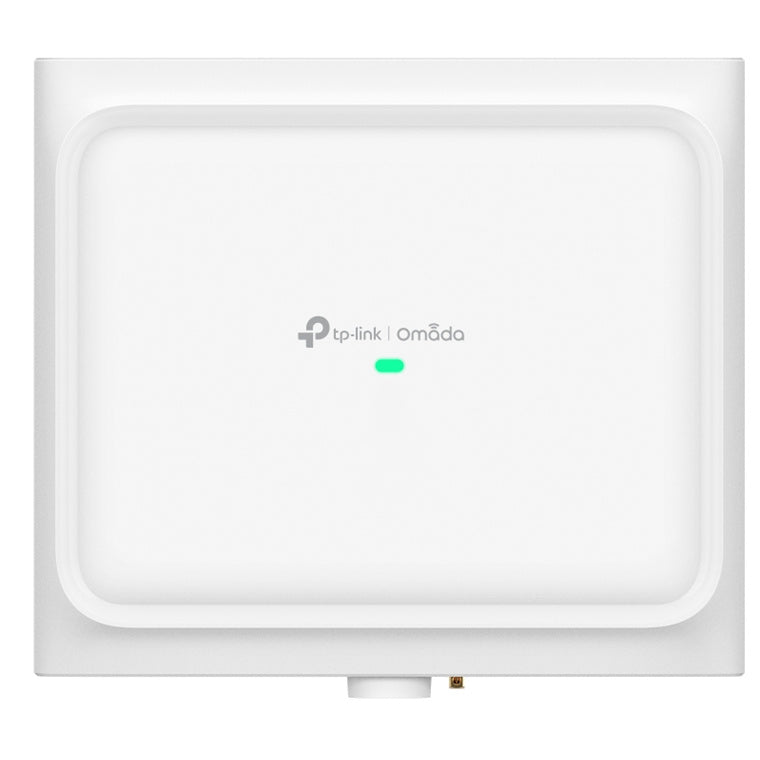

TP-Link EAP650 D120-Outdoor AX3000 Wireless 120 Deg Directional AP

EAP650 D120-Outdoor AX3000 Indoor/Outdoor WiFi 6 Access Point
Superior WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
Directional Ultra-Range Coverage: Equipped with built-in high-gain directional antennas to deliver precise and extended coverage.
Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30°C to +70°C operating range.
802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners.
Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology.
Centralized Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI.

Designed for Warehouses
The EAP650 D120-Outdoor features a durable, fully sealed IP68 weatherproof enclosure, making it dustproof and capable of withstanding submersion in water. It is ideal for warehouse environments.
- Durable Waterproof Enclosure
- Operating Temperature of -30°C to 70°C
- No Ingress of Dust

Elevate WiFi Experience for Shelf Areas with Directional Antennas
Equipped with 4 x built-in dual-band directional antennas with high gain to ensure the optimal WiFi experience ideal for precise and extended coverage.

Directional Antennas for Ultra-Range Coverage in Outdoor Scenarios*
*Based on field tests in an open, outdoor, and unobstructed environment. The number listed here is the maximum distance of one EAP650 D120-Outdoor which the client's signal strength is = 75 dBm. The real transmission range and recommended coverage may vary, according to the environment, receiving device, etc.

Stay Smooth with Seamless Roaming
Ensure users enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signals.

Seamless Integration into Omada SDN

HARDWARE FEATURES
Interface: 1× Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE)
Button: Reset
Power Supply: 802.3at PoE, 48V Passive PoE
Max. Power Consumption: EU: 12.5W (802.3at PoE or Passive PoE), US: 14.7W (802.3at PoE or Passive PoE)
Dimensions (W x D x H): 9.1 × 8.2 × 2.8 in (230 × 207.5 × 69.7 mm)
Antenna: Built-in Directional Antennas: 2.4 GHz: 2× 8 dBi, 5 GHz: 2× 10 dBi, Beamwidth: 120° Horizontal; 30° Vertical
Bluetooth: Yes
Weatherproof Enclosure: IP68
Mounting: Optional bracket accessory APM-110 (Supports vertical ±180°, horizontal ±45° adjustment), Optional bracket accessory APM-100 (Supports vertical ±45°, horizontal ±45° adjustment)

WIRELESS FEATURES
Coverage: 2.4 GHz: 200+ m*, 5 GHz: 500+ m*
Concurrent Clients: 250+**
Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax
Frequency: 2.4 GHz, 5 GHz
Signal Rate: 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)***
Wireless Functions: 1024-QAM, DL/UL OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 on each band), Enable/Disable Wireless Radio, Enable/Disable SSID Broadcast, Guest Network, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS (WMM), 2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO, Omada Mesh§, Seamless Roaming(802.11k/v/r)§, Band Steering, Load Balance, Airtime Fairness, Beamforming, RADIUS Accounting, MAC Authentication, Reboot Schedule, Wireless Schedule, Wireless Statistics, Static IP/Dynamic IP
Wireless Security: Captive Portal Authentication****, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power: CE: < 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP); FCC: < 30 dBm (2.4 GHz); < 30 dBm (5 GHz)

Management Features
Omada App: Yes
Restore & Backup: Yes
NTP: Yes
Centralized Management: Omada Hardware Controller, Omada Software Controller, Omada Cloud-based Controller, Omada APP
Cloud Access: Yes, through Omada Hardware Controller, Omada Software Controller, Omada Cloud-based Controller, Omada APP
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog: Yes
SSH: Yes
Web-based Management: Yes
Multi-site Management: Yes
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS
Certification: CE, FCC, RoHS
Package Content: Access Point EAP650 D120-Outdoor, Mounting Kits, Installation Guide
System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment: Operating Temperature: -30-70°C (-22-158°F), Storage Temperature: -40-70°C (-40-158°F), Operating Humidity: 10-90% RH non-condensing, Storage Humidity: 5-90% RH non-condensing
