TP-Link EAP625 Outdoor HD Wi-Fi 6 AX1800 Wireless Dual Band Gigabit AP

EAP625-Outdoor HD AX1800 Indoor/Outdoor Wi-Fi 6 Access Point

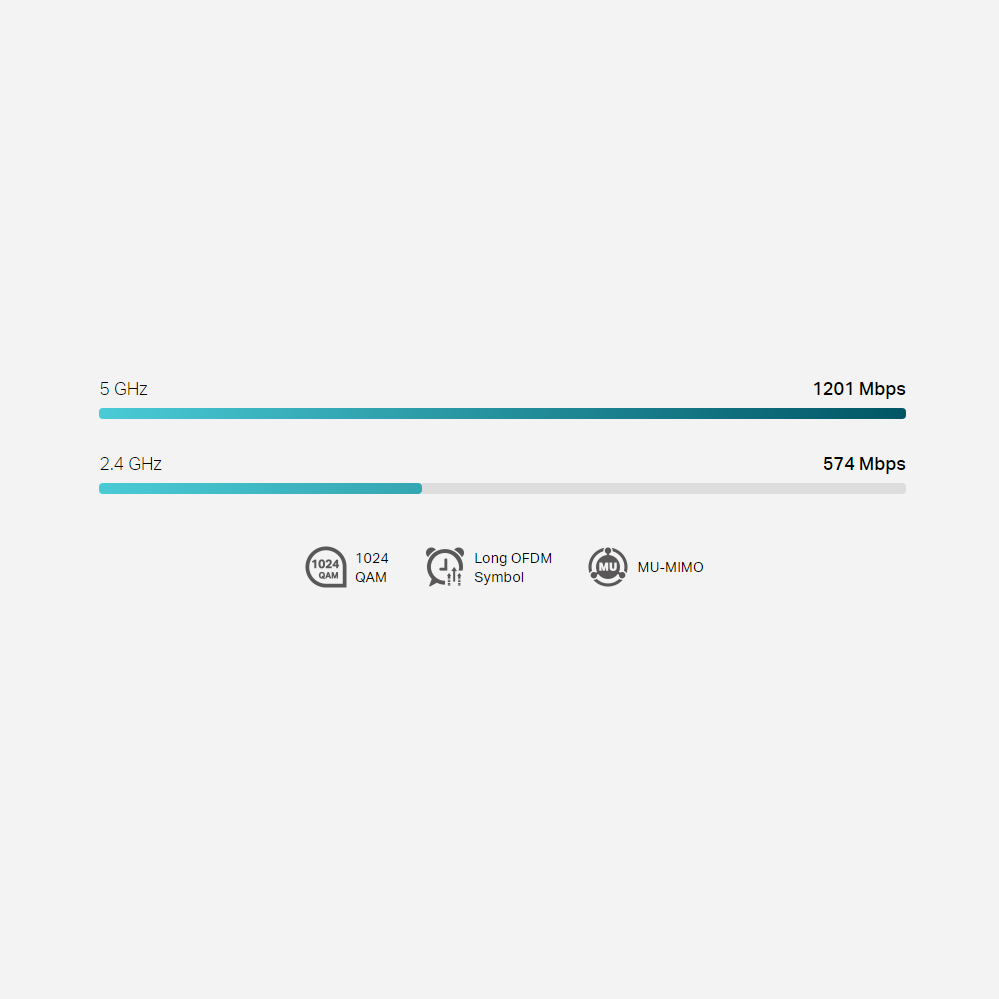

- Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz.
- Supports WiFi 6 technologies, such as 1024-QAM, OFDMA, etc.
- High-density connectivity up to 1,000+ clients.
- Long-range coverage with the high-power amplifier and 2× detachable antennas.
- IP67 weatherproof enclosure for various outdoor environments.
- Advanced Functions: Centralized management, Omada mesh, and seamless roaming.
- PoE+ Powered: Supports both 802.3at PoE (adapter not included).

High-Performance Wi-Fi 6
Powered by the latest WiFi 6 technologies, such as MU-MIMO and 1024 QAM, our EAP625-Outdoor HD brings speeds up to 1.8 Gbps.

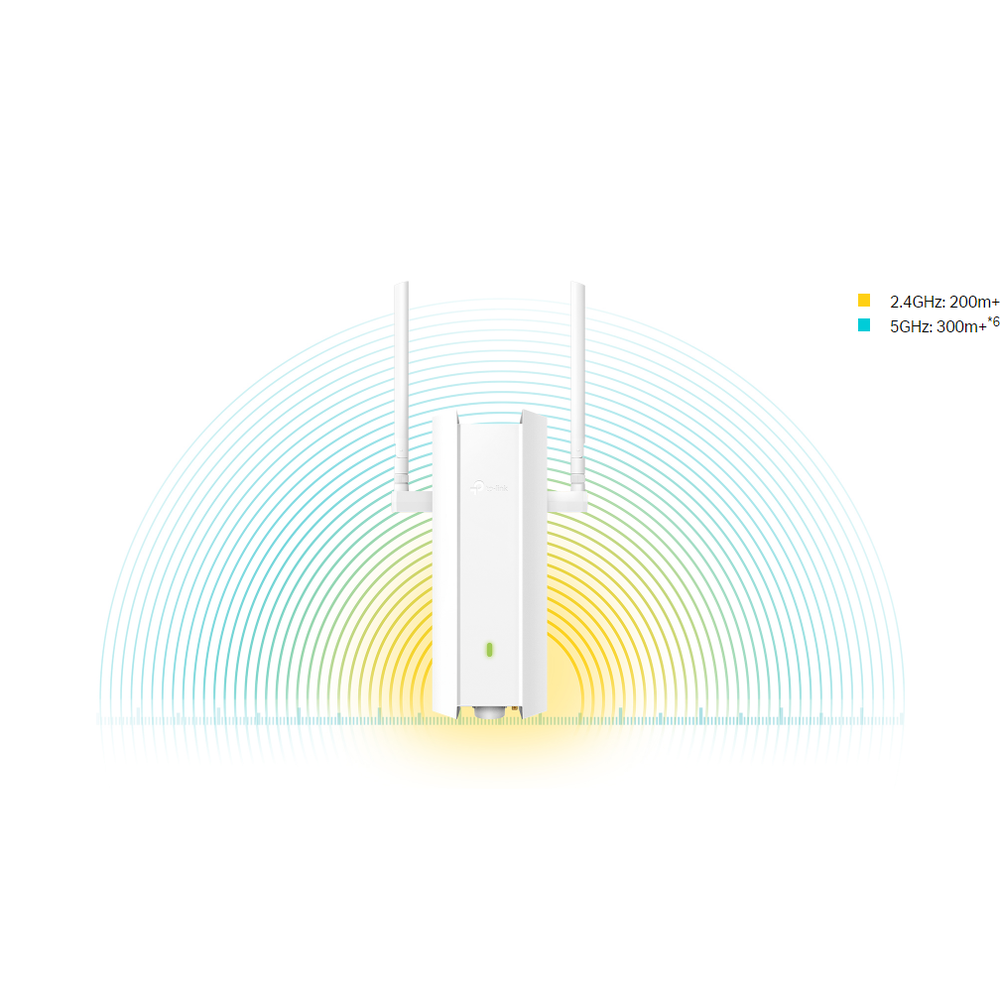

Long Distance Starts with External Antennas
Two detachable external antennas for 5 GHz and 2.4 GHz provide optimal coverage and greater flexibility for your network.

Ideal for High-Density Outdoor Scenes
FDMA and MU-MIMO provide simultaneous connections for dozens of clients in large open areas.
Equipped with an IP67 weatherproof enclosure, our EAP625-Outdoor HD withstands the most extreme environments.
- IP67 Weatherproof Enclosure
- 6KV Lightning Protection

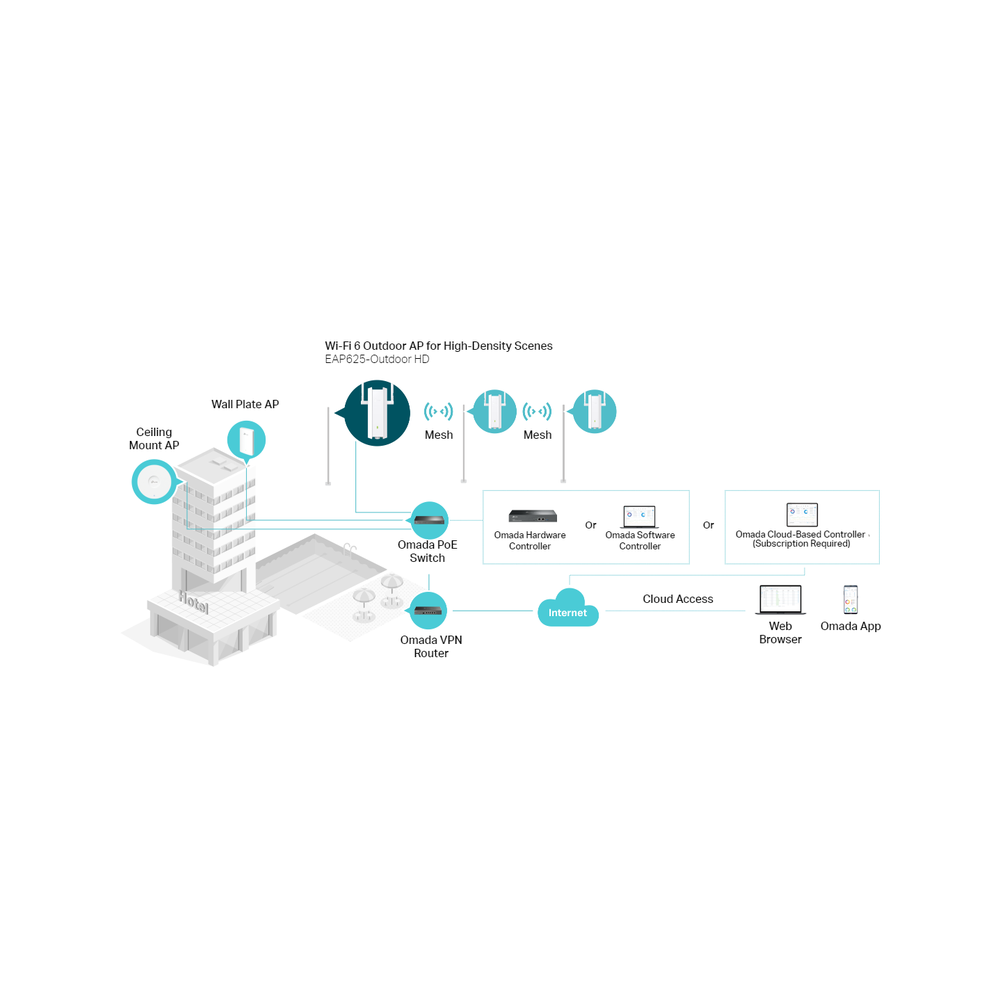

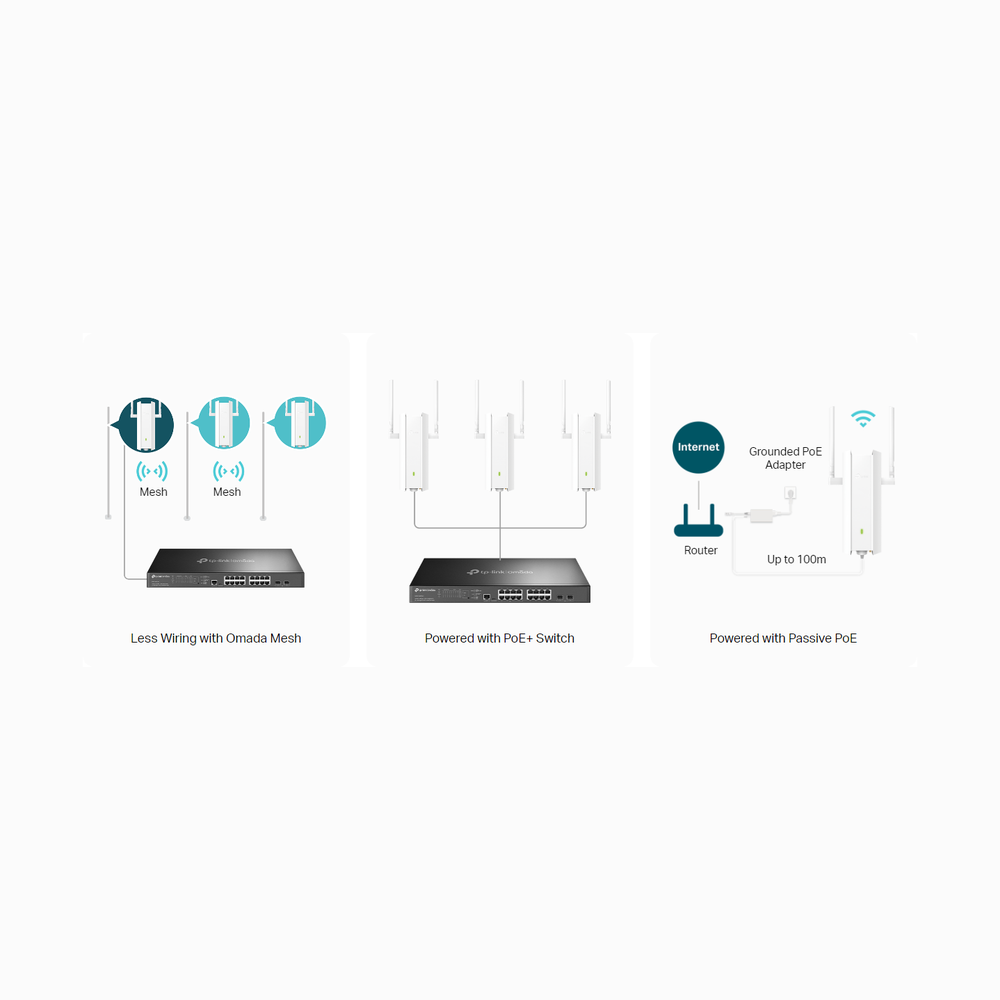

Flexible Deployment with Omada Mesh and PoE Support

Seamless Integration into Omada SDN

HARDWARE FEATURES
Interface: 1x Gigabit Ethernet Port
Button: Reset
Power Supply: 802.3at PoE, 48V Passive PoE (PoE adapter not included)
Dimensions (W x D x H): 11.0 x 7.2 x 2.2 in (280.4 × 182.2 × 56.9 mm)
Antenna Type: 2× External Dual-Band Omni Antennas (2.4 GHz: 3.0 dBi; 5 GHz: 5.0 dBi)
Weatherproof Enclosure: IP67
Mounting: Pole/Wall Mounting (Kits included)

WIRELESS FEATURES
Concurrent Clients: 1,000
Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax
Frequency: 5 GHz, and 2.4 GHz
Signal Rate: 5 GHz: Up to 1201 Mbps; 2.4 GHz: Up to 574 Mbps
Wireless Functions: Mesh, Seamless Roaming, Automatic Channel Assignment, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDs: 16 (8 for each band), Wireless Statistics, Wireless Schedule, Reboot Schedule, RADIUS Accounting, MAC Authentication, Static IP/Dynamic IP
Wireless Security: VLAN, Access Control, Rogue AP Detection, Captive Portal Authentication, Maximum number of MAC Filter: 4,000, Wireless Isolation between Clients, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, 802.1X Support
Transmission Power: CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP); FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz)

MANAGEMENT
Omada App: Yes
Restore & Backup: Yes
Firmware update via Web: Yes
NTP: Yes
Centralized Management: Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller, Omada Cloud-Based Controller
Cloud Access: Yes
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
SSH: Yes
Web-based Management: Yes

OTHERS
Certification: CE, FCC, RoHS
Package Contents: EAP625-Outdoor HD, 2× Detachable Antennas, Installation Guide, Mounting Kit, Waterproof Kit
Environment: Operating Temperature: -30 °C-70 °C (-22 °F-158 °F); Storage Temperature: -40 °C-70 °C (-40 °F-158 °F); Operating Humidity: 10%-90% non-condensing; Storage Humidity: 5%-90% non-condensing
