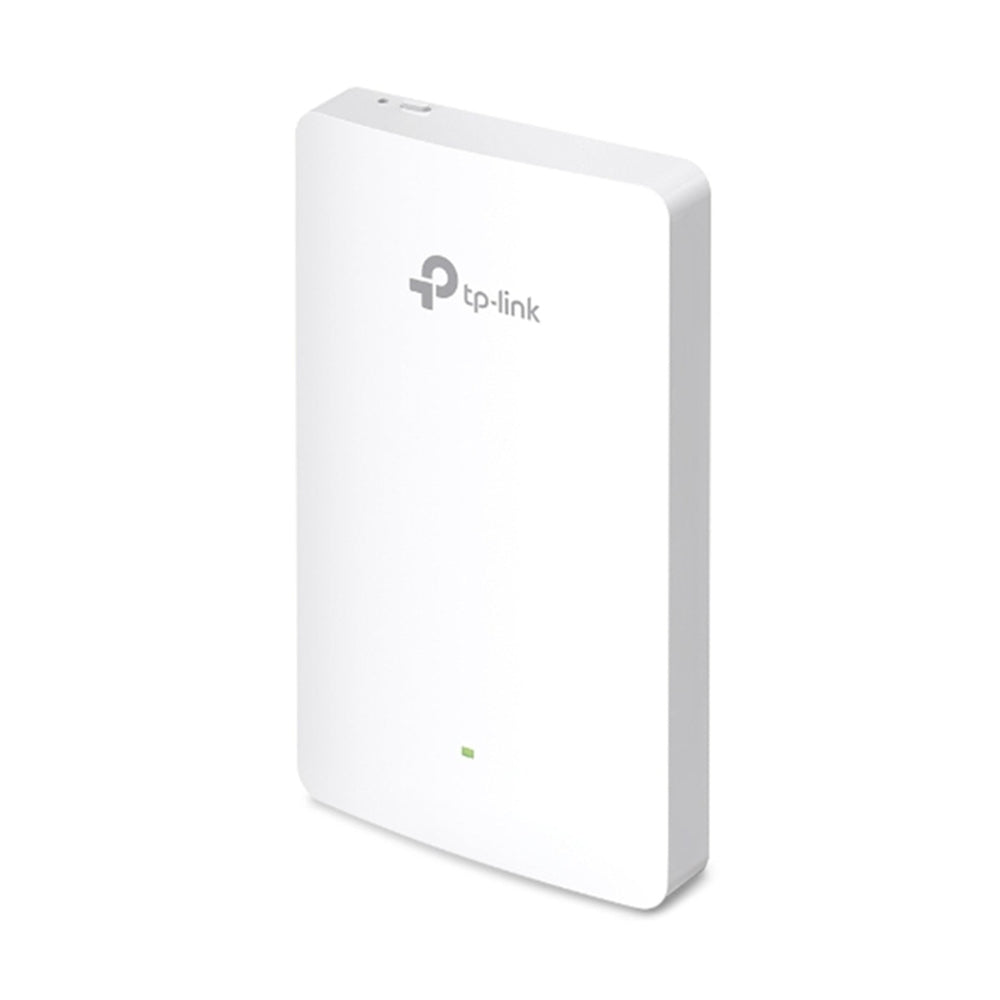

TP-Link EAP615 Wi-Fi 6 AX1800 Wall Plate AP

EAP615-Wall AX1800 Wall Plate WiFi 6 Access Point
- Superior WiFi 6 Speeds - Delivers dual-band speeds of up to 18 Gbps powered by the latest WiFi 6 technology
- Complete In-Room WiFi Coverage - Guarantees strong signals and corner-to-corner WiFi coverage in each room
- Higher Network Efficiency - OFDMA and DL/UL MU-MIMO* deliver data to multiple devices simultaneously with less lag
- Full Gigabit Ports - Connect multiple devices with four gigabit ports and one downlink port offering PoE pass-through
- Centralized Cloud Management - Integrates into Omada SDN for cloud access and remote management

Futureproof Your Network with WiFi 6 Connectivity
Connect more devices at the same time with WiFi 6 speeds of up to 1800 Mbps.

Corner-to-Corner Indoor WiFi Coverage
Guests can enjoy strong private networks that paint their entire space by installing EAP615-Walls in each guest room.

*Uplink MU-MIMO requires further firmware upgrades.
**Product is being developed and the pictures are design sketches for reference only.

HARDWARE FEATURES
Interface
Uplink: 1× 10/100/1000 Mbps Ethernet Port
Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)
Physical Security Lock: Yes
Button: Reset
Power Supply: 802.3af/at PoE
Power Consumption: EU: 10W (802.3at PoE, PoE Out off), US: 11.5W (802.3at PoE, PoE Out off)
Dimensions: 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Antenna: 2 Dual-Band Antennas (2.4 GHz: 2× 3 dBi, 5 GHz: 2× 4 dBi)
Mounting: Wall Plate Mounting

WIRELESS FEATURES
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4 GHz and 5 GHz
Signal Rate: 5 GHz: Up to 1201 Mbps, 2.4 GHz: Up to 574 Mbps
Wireless Functions: 16 SSIDs (Up to 8 SSIDs on each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), Seamless Roaming, Beamforming, MU-MIMO, Rate Limit, Load Balance, Airtime Fairness, Band Steering, Reboot Schedule, Wireless Schedule, RADIUS Accounting, MAC Authentication, Wireless Statistics, Static IP/Dynamic IP
Wireless Security: Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, VLAN, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power: CE: < 20 dBm (2.4 GHz, EIRP), < 23 dBm (5 GHz, EIRP); FCC: < 21 dBm (2.4 GHz), < 21 dBm (5 GHz)

MANAGEMENT
Omada App: Yes
Centralized Management: Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
Cloud Access: Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog: Local/Remote Syslog
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes

OTHERS
Certification: CE, FCC, RoHS
Package Contents: AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall, Installation Guide, Mounting Kits
System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment: Operating Temperature: 0-40 C (32-104 F), Storage Temperature: -40-70 C (-40-158 F), Operating Humidity: 10-90% RH non-condensing, Storage Humidity: 5-90% RH non-condensing
