TP-Link DR3650v-4G Omada 4G AX3000 VPN Router w/VOIP

DR3650v-4G

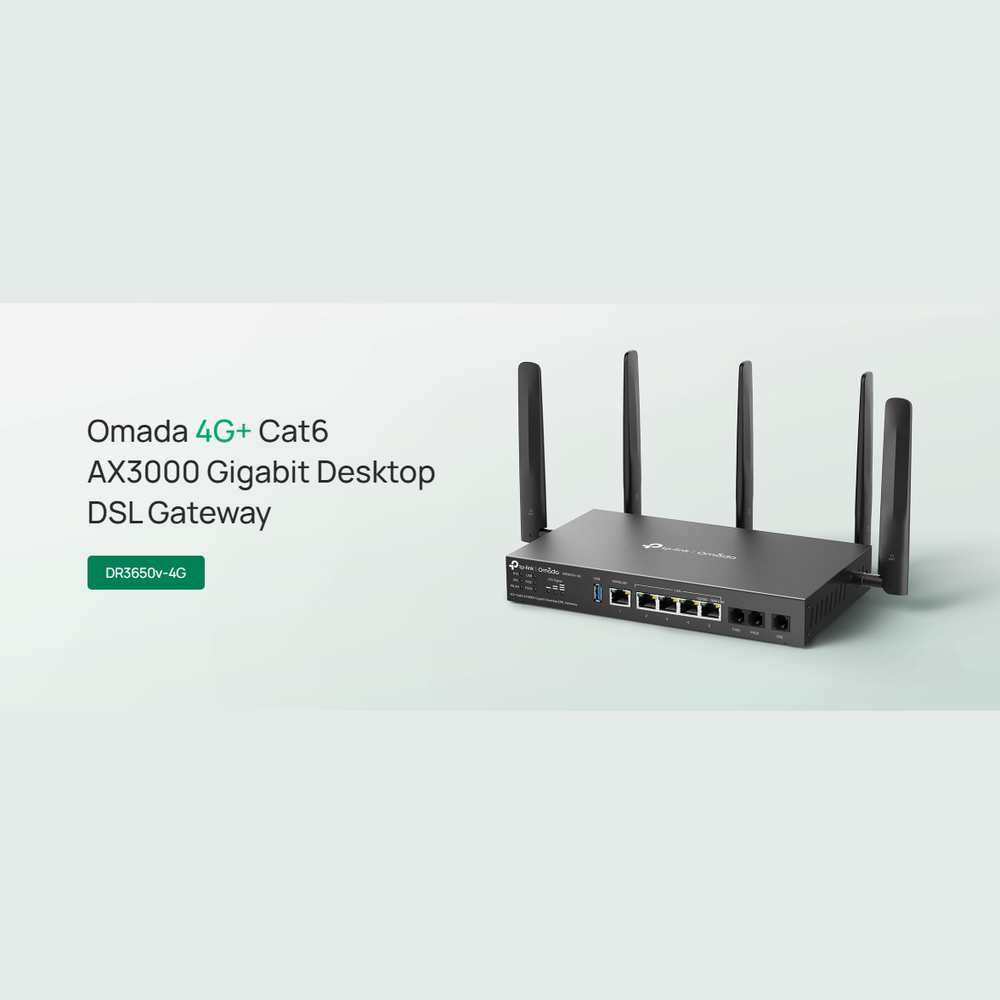

Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway
- AX3000 WiFi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*1
- 4G+ Cat6 up to 300Mbps
- 3x RJ11 Ports (2x FXS, 1x DSL) & 5x RJ45 Gigabit Ports & 1x USB 3.0 Port
- 2x Nano SIM for 4G/LTE Failover
- VDSL2 35b: Supports 350Mbps DSL Access*2
- VDSL2/ADSL2+/ADSL2/ADSL Compatibility
- IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
- Load Balancing Across DSL, 4G, and Ethernet WAN for Optimized Connectivity
- Centralized Cloud Management
- Desktop/Wall/Rack Mounting (Purchase Rackmount Kit-D226 Separately)

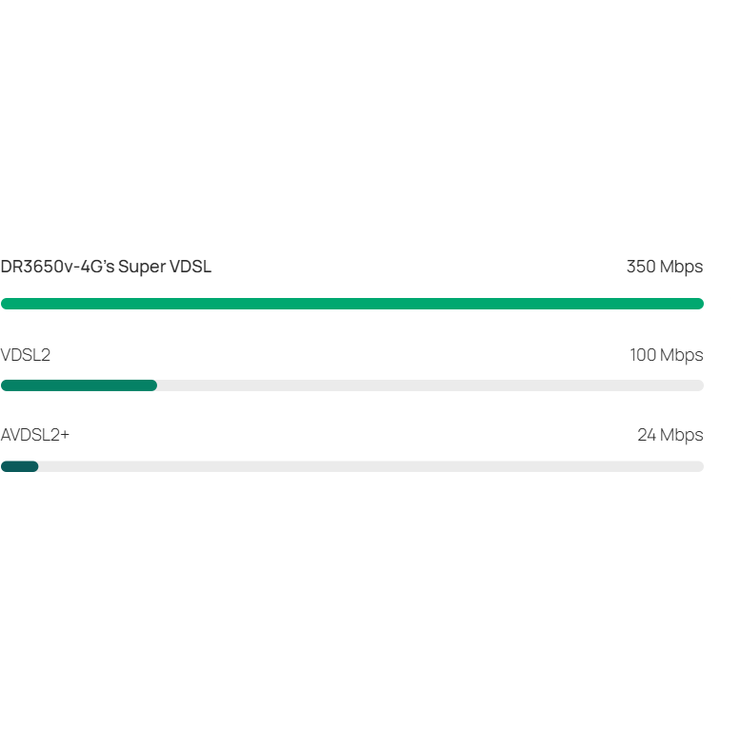

Get the Higher DSL Speeds Cost-Effectively
The integrated DSL port supports VDSL2/ADSL2+/ADSL2/ADSL connections. Compatibility with the leading ISPs provides ideal IP-based connections for any small business.

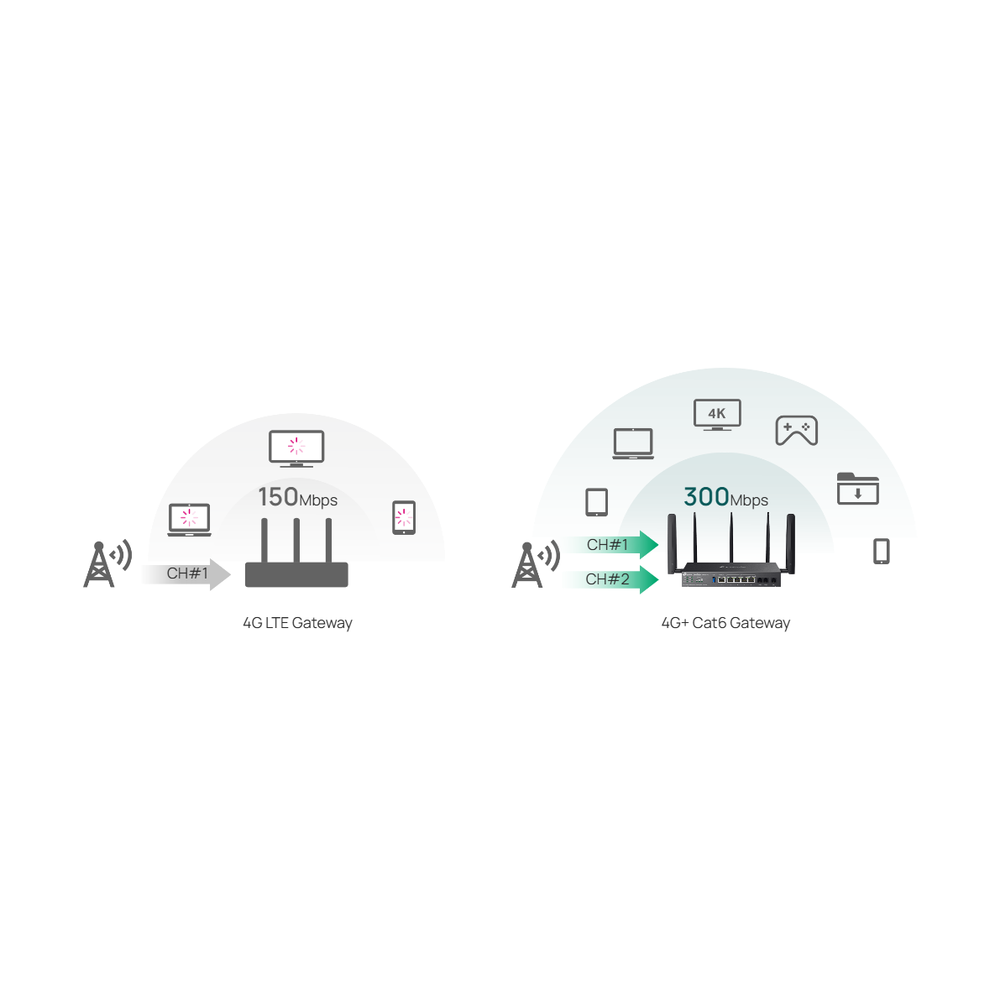

Get Instant 4G+ LTE - Internet up to 300 Mbps

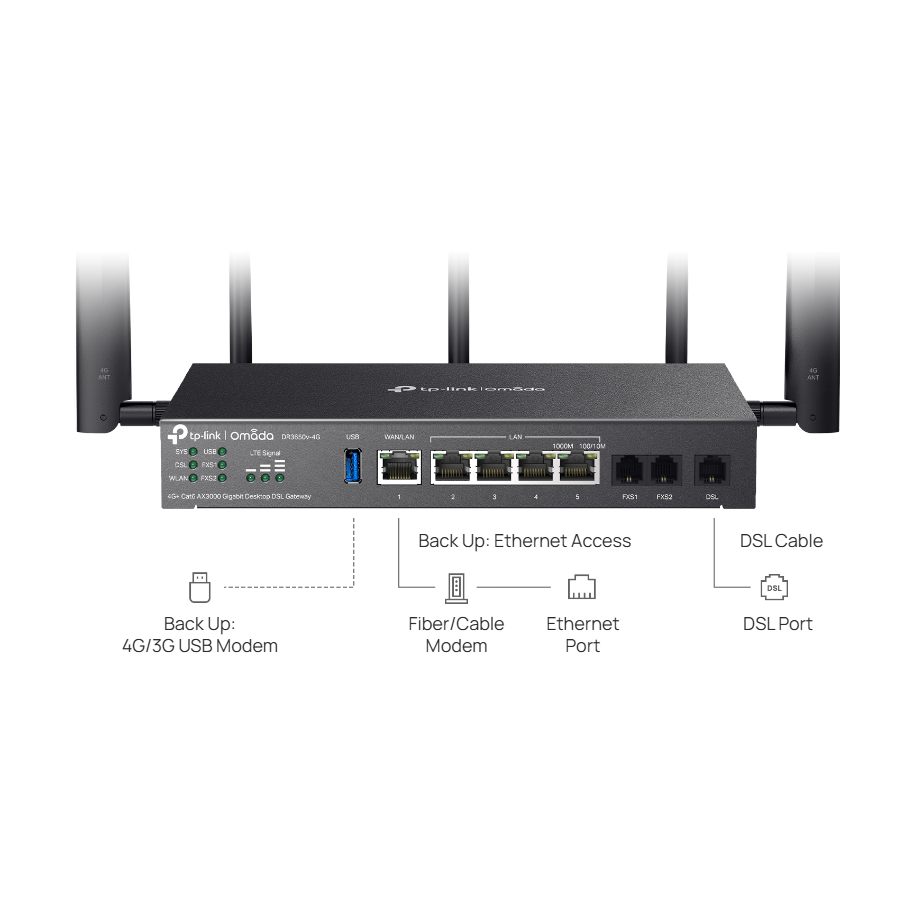

Versatile Connectivity
DR3650v-4G's compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 4G/3G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the FXS ports supports VoIP for reliable voice communication. The USB 3.0 port supports 4G/3G dongles for a solid main or backup internet connection.

Up to 3.0 Gbps Business-Level Wi-Fi 6 Empowers Small and Medium Business*
HE 160 Double the data at peak transmission times on a single stream
OFDMA Enables different devices to share one transmission stream, increasing efficiency
1024 QAM 25% more data encoded at one time

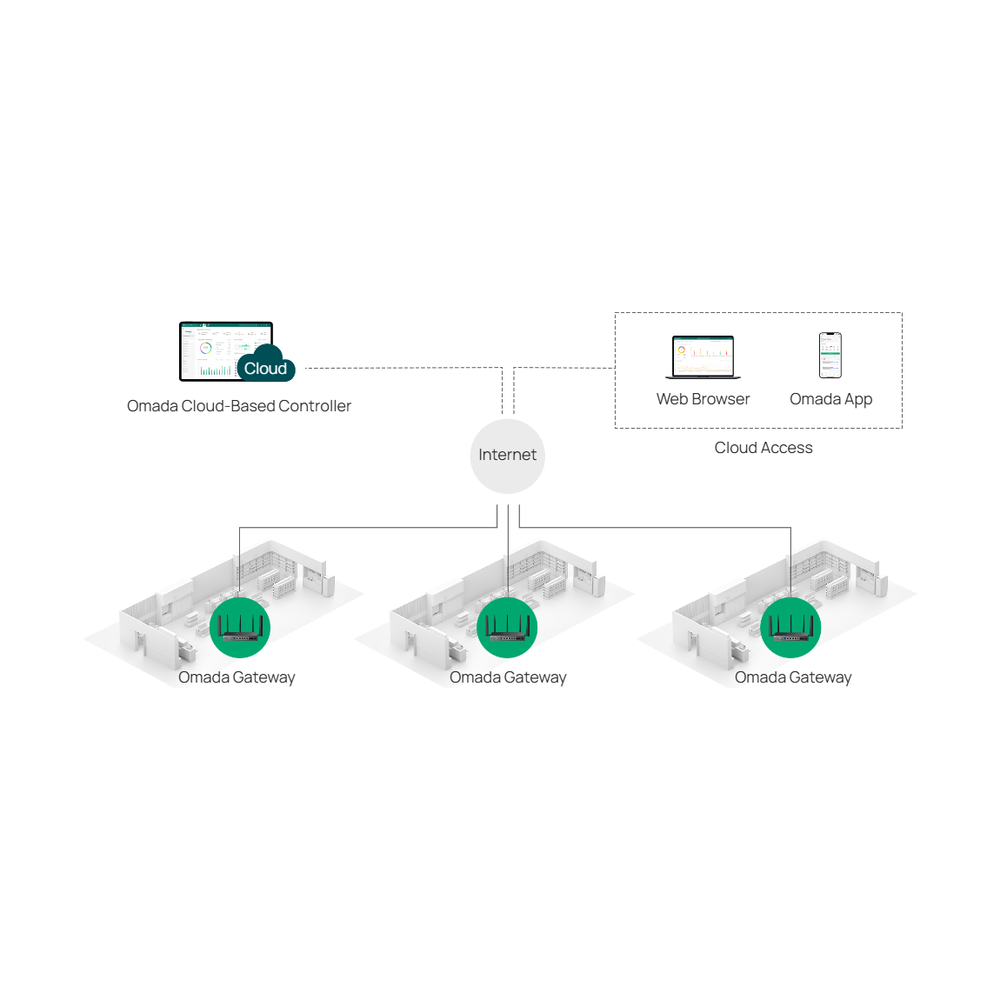

Software Defined Networking (SDN) with Cloud Access
Centralised cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud-based controller offering the Essentials version of cloud services for free, reducing maintaince costs.

High-Security and High-Performance VPN
SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.

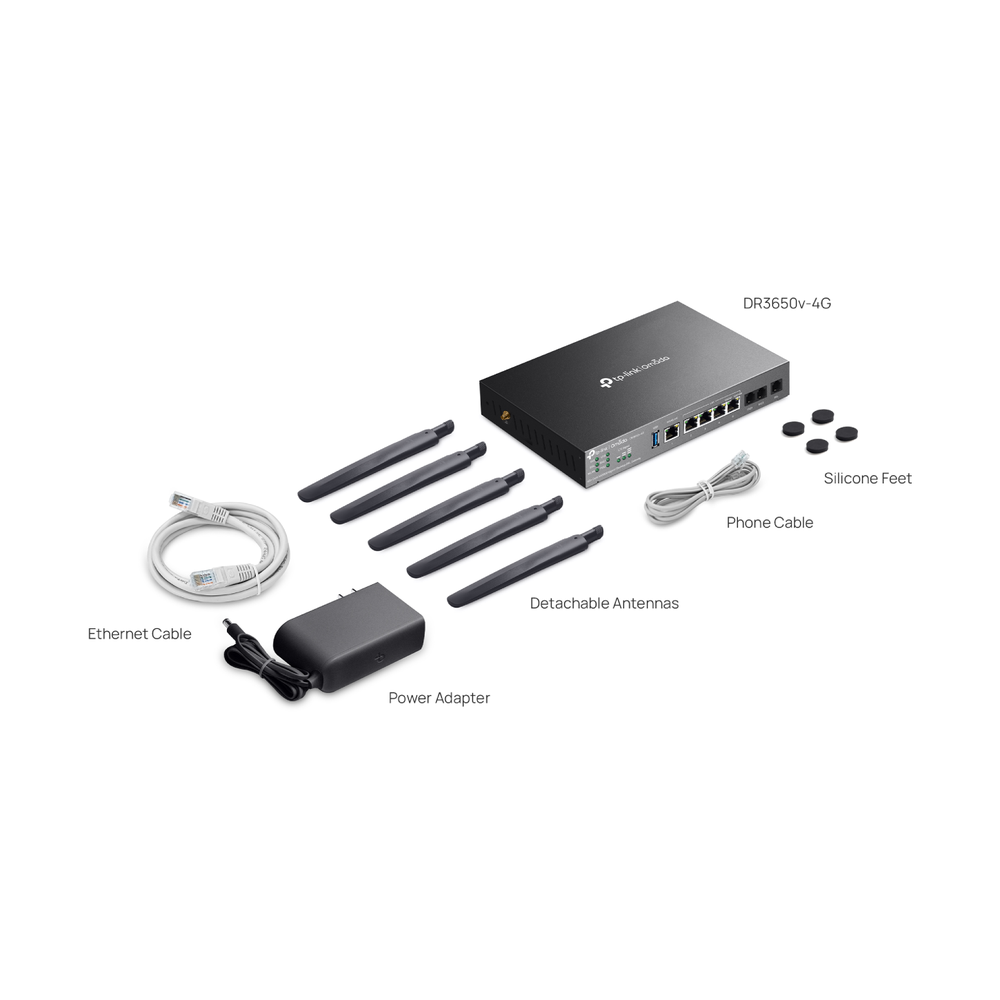

In the Box

Build Features

SECURITY
Access Control: Source/Destination IP Based Access Control
Filtering: Web Group Filtering*5, URL Filtering, Web Security*5
ARP Inspection: Sending GARP Packets, ARP Scanning*5, IP-MAC Binding
Attack Defense: TCP/UDP/ICMP Flood Defense, Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN

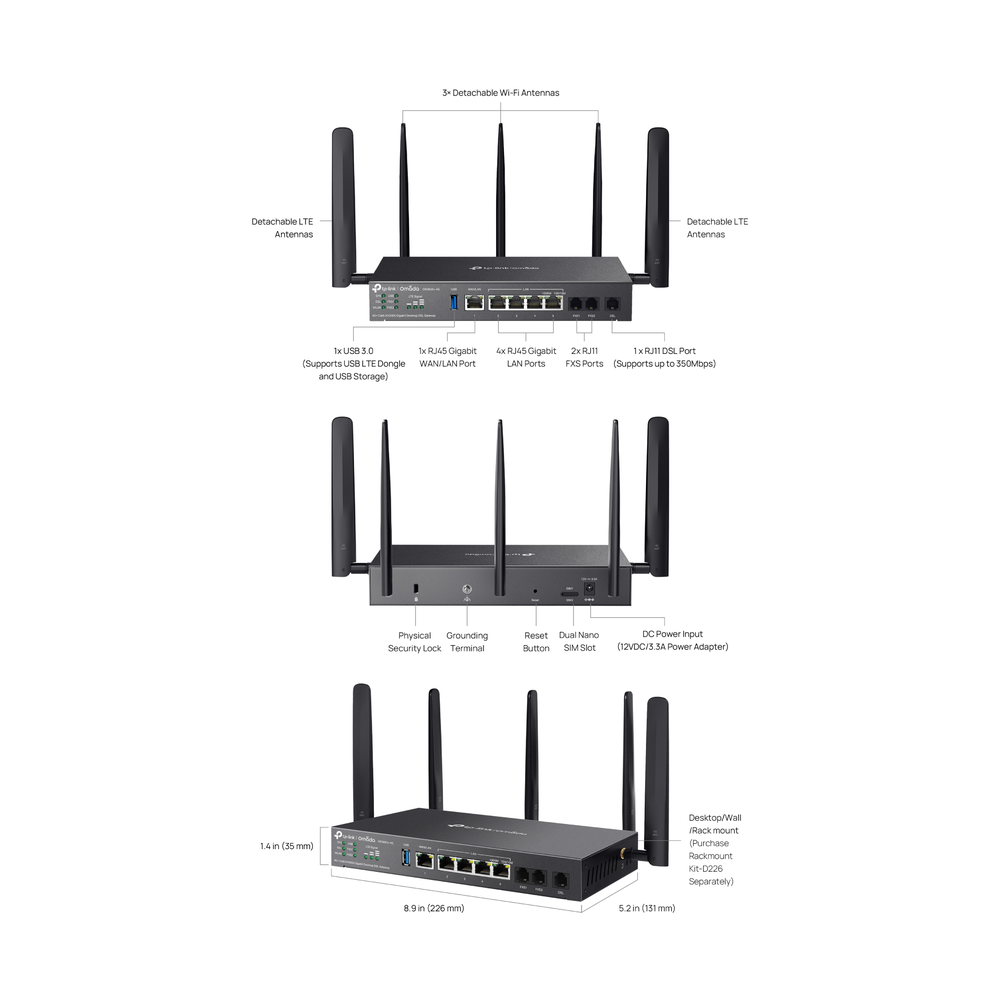

HARDWARE FEATURES
Interface: 1× Gigabit WAN/LAN Port, 4× Gigabit LAN Ports, 1× DSL Port, 2× FXS Ports, 1× USB 3.0 (supports USB LTE dongle and USB Storage), Dual Nano SIM Slot (4G+ Cat6)
Button: Reset Button
Power Supply: 12V DC / 3.3A Power Adapter
Wi-Fi Frequency & Signal Rate: 2.4 GHz: 574 Mbps, 5 GHz: 2402 Mbps (HE160)
Flash: 256 MB NAND
DRAM: 512 MB DDR4
Dimensions (W x D x H): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included)
Antenna: Wi-Fi: 3× 5GHz 5dBi & 2.4GHz 3.5dBi dual-band detachable antennas, LTE: 2× 4.0dBi omnidirectional detachable antennas
Mounting: Desktop/Wall-mounting/Rackmount (with Kit-D226, sold separately)
Max. Power Consumption: Power adapter not included: 28.482 W (Full load + USB), Power adapter included: 31.42 W (Full load + USB)

PERFORMANCE
GRE: Unencrypted: 541.8Mbp, Encrypted: 289.2Mbps
WireGuard VPN: 311.6Mbps
Concurrent Session: 150,000
New Sessions /Second: 3,800
NAT (Static IP): 937.2 Mbps / 936.1Mbps
NAT(DHCP): 945.8 Mbps / 940.6Mbps
NAT(PPPoE): 942.9 Mbps / 942.9Mbps
NAT (L2TP): 837.4 Mbps / 881.5Mbps
NAT (PPTP): 803.0 Mbps / 910.5 Mbps
IPsec VPN Throughput: ESP-SHA1-AES256: 569.9Mbps, ESP-SHA256-AES256: 543.3Mbps, ESP-SHA384-AES256: 549.0Mbps, ESP-SHA512-AES256: 539.3Mbps
OpenVPN: 129.3Mbps
L2TP VPN Throughput: Unencrypted: 909.4 Mbps, Encrypted: 494.9Mbps
PPTP VPN Throughput: Unencrypted: 897.5 Mbps, Encrypted: 190.8 Mbps
SSL VPN Throughput: 126.7Mbps
66 Byte Packet Forwarding Rate: 1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate: 81,274 pps / 91,275 pps

WIRELESS FEATURES
Advanced Features: Seamless Roaming, Mesh (with EAP that supports Mesh), OFDMA, Beamforming, Enable/Disable SSID Broadcast, Enable/Disable Wireless Radio, MU-MIMO, Load Balance, Automatic Channel Selection Algorithm, Airtime Fairness, Rate Limit: Based on SSID/Client, Transmit Power Control: Adjust transmit Power on dBm, Multiple SSIDs: 16 in total (8 per radio), Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Guest Network: Support

BASIC FUNCTIONS
WAN Connection Type: Static IP, Dynamic IP, PPPoE (supports MRU Configuration), PPTP, L2TP
MAC Clone: Modify WAN Address
DHCP: DHCP Server, DHCPv6 PD Server (only in Standalone Mode), DHCP Options Customization, DHCP Address Reservation, Multi-IP Interfaces, Multi-Net DHCP
IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN: 802.1Q VLAN
IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Features
Advanced Routing: Static Routing, Policy Routing, RIP*5, OSPF*5
Bandwidth Control: IP-Based Bandwidth Control
Load Balance: Intelligent Load Balance, Application Optimized Routing, Link Backup(Timing, Failover), Online Detection
NAT: One-to-One NAT, Multi-Net NAT, Virtual Server, Port Triggering*5, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Session Limit: IP-Based Session Limit

VPN
GRE: Only in Standalone Mode
SSL VPN: 50 Tunnels
IPsec VPN: 100 IPSec VPN Tunnels, LAN-to-LAN, Client-to-LAN, Main, Aggressive Negotiation Mode, DES, 3DES, AES128, AES192, AES256 Encryption Algorithm, IPsec Failover, IKE v1/v2, MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm, NAT Traversal (NAT-T), Dead Peer Detection (DPD), Perfect Forward Secrecy (PFS)
PPTP VPN: PPTP VPN Server, PPTP VPN Client (10)*6, 50 Tunnels, PPTP with MPPE Encryption
L2TP VPN: L2TP VPN Server, L2TP VPN Client (10)*6, 50 Tunnels, L2TP over IPSec
OpenVPN: OpenVPN Server, OpenVPN Client (5)*6, 55 OpenVPN Tunnels, "Certificate + Account" Mode, Full Mode
WireGuard VPN: Yes

AUTHENTICATION
Web Authentication: No Authentication, Simple Password*6, Hotspot (Local User / Voucher*6 / SMS*6 / Radius*6), External Radius Sever, External Portal Sever*6, LDAP

Management Features
Omada App: Yes
Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
Cloud Access: Yes. Require the use of Omada Controller.
Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance: Web Management Interface, Remote Management, Export & Import Configuration, SNMP v1/v2c/v3, Diagnostics (Ping & Traceroute)*5, NTP Synchronize*5, Port Mirroring, CLI (only in Standalone Mode), Syslog Support, TR-069 (data models of TR-098 and TR181 are supported), Zero-Touch Provisioning: Yes. Require the use of Omada Controller.
Management Features: Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration

OTHERS
Certification: CE, RoHS
Package Content: DR3650v-4G, Power Adapter, Ethernet Cable, Phone Cable, Quick Installation Guide
System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
Environment: Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F), Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F), Operating Humidity: 10% to 90% non-condensing, Storage Humidity: 5% to 90% non-condensing
