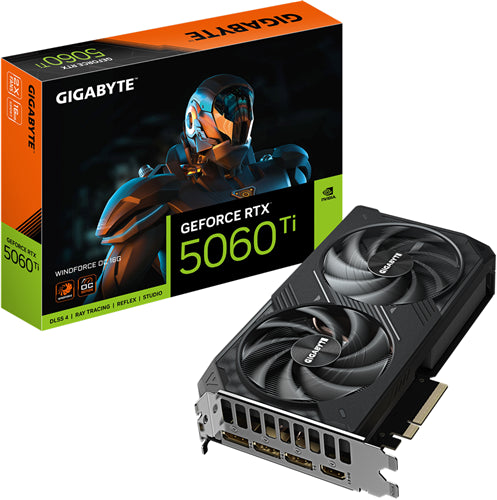

Gigabyte GV-N506TWF2OC-16GD RTX5060TI 16GB PCIE Graphics Card

WINDFORCE COOLING SYSTEM: Delivers exceptional thermal performance with server-grade thermal conductive gel, Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.
HAWK FAN: Unique blade design reduces air resistance and noise, increasing air pressure by up to 53.6% and air volume by 12.5%.
ALTERNATE SPINNING: Reduces turbulence and increases airflow pressure between adjacent fans.
GRAPHENE NANO LUBRICANT: Extends sleeve bearing fan life by 2.1 times, similar to double ball bearing, with quieter operation.
3D ACTIVE FAN: Provides semi-passive cooling, keeping fans off during low GPU load or low power games.
SERVER-GRADE THERMAL CONDUCTIVE GEL: Enhances reliability by providing optimal contact for uneven surfaces and resisting deformation for critical components like VRAM and MOSFETs.
COPPER PLATE & COMPOSITE COPPER HEAT PIPE: Copper plate directly contacts the GPU, quickly transferring heat to the heatsink.
SCREEN COOLING: Extended heatsink allows air to pass through for effective heat dissipation.
METAL BACKPLATE: Reinforced metal backplate provides exceptional structural integrity.
ULTRA DURABLE: Features lower RDS(on) MOSFETs for ultra-cooling, metal chokes for low power loss, and lower ESR solid capacitors for longer lifespan.
FRIENDLY PCB DESIGN: Fully automated production process ensures high-quality circuit boards without sharp protrusions.
GIGABYTE CONTROL CENTER (GCC): Unified software for adjusting clock speed, voltage, fan mode, and power target in real-time.
AI TOP UTILITY: Tested and validated for AI training workloads, supporting common open-source LLMs and offering groundbreaking technologies for AI TOP Solution.

Graphics Processing: GeForce RTX™ 5060 Ti
Core Clock: 2587 MHz
CUDA® Cores: TBD
Memory Clock: 28Gb/s
Memory Size: 16GB
Memory Type: GDDR7
Memory Bus: 128 bit
Card Bus: PCI-E 5.0
Digital max resolution: 7680x4320
Multi-view: 4
Card size: L=208 W=120 H=40 mm
PCB Form: ATX
DirectX: DirectX 12 API
OpenGL: 4.6
Recommended PSU: 650W
Power Connectors: 8 Pin*1
Output: DP2.1 x3, HDMI2.1 x1
RGB Lighting: N/A
Accessories: Quick guide
