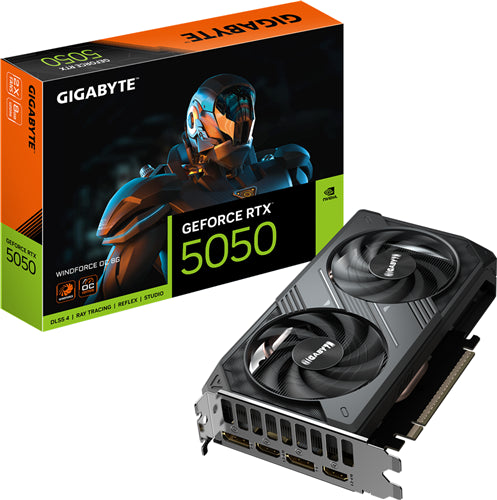

Gigabyte GV-N5050WF2OC-8GD RTX5050 8GB Graphics Card

GeForce RTX™ 5050 WINDFORCE OC 8G
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX™ 5050
- Integrated with 8GB GDDR6 128bit memory interface
- WINDFORCE cooling system
- Hawk fan
- Server-grade Thermal conductive gel
- Reinforced structure
- CORE CLOCK 2587 MHz (Reference card : 2572MHz)

NVIDIA Blackwell Architecture: The Ultimate Platform for Gamers and Creators
- Fifth-Gen Tensor Cores: Max AI performance with FP4 and DLSS 4
- New Streaming Multiprocessors: Optimized for neural shaders
- Fourth-Gen Ray Tracing Cores: Built for Mega Geometry
- AI-Enhanced Graphics and Performance: NVIDIA DLSS 4 with Multi Frame Generation
- Game-Winning Responsiveness: NVIDIA Reflex 2 with Frame Warp
- True-to-Life Graphics: Full ray tracing with neural rendering
- Digital Humans and AI Assistants: NVIDIA ACE
- Accelerate Your Creativity: NVIDIA Studio creator tools and technology
- Enhance Any Video with AI: NVIDIA Broadcast and ninth-gen NVIDIA Encoder
- Performance and Reliability: NVIDIA app with Game Ready and Studio Drivers
- The Ultimate Gaming Display Technologies: NVIDIA G-SYNC

WINDFORCE COOLING SYSTEM: Delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.

HAWK FAN: Features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

GRAPHENE NANO LUBRICANT: Extends the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ALTERNATE SPINNING: Reduces the turbulence of adjacent fans and increases airflow pressure.

3D ACTIVE FAN: Provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

SERVER-GRADE THERMAL CONDUCTIVE GEL: Enhances product quality and reliability by providing optimal contact for uneven surfaces and effectively resisting deformation from transport or long-term use.

COPPER PLATE & COMPOSITE COPPER HEAT PIPE: The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING: Extended heatsink allows air to pass through, providing better heat dissipation.

REINFORCED STRUCTURE: The reinforced backplate, securely fastened to the I/O bracket, provides exceptional structural integrity.

SUPERIOR CRAFTSMANSHIP
- ULTRA DURABLE - ULTRA COOLING: Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
- LOW POWER LOSS: Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
- LONGER LIFE: Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
- FRIENDLY PCB DESIGN: Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER (GCC): A unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Graphics Processing: GeForce RTX™ 5050
Core Clock: 2587 MHz (Reference card : 2572MHz)
CUDA® Cores: 2560
Memory Clock: 20 Gbps
Memory Size: 8 GB
Memory Type: GDDR6
Memory Bus: 128 bit
Card Bus: PCI-E 5.0
Digital max resolution: 7680x4320
Multi-view: 4
Card size: L=199 W=116 H=40 mm
PCB Form: ATX
DirectX: DirectX 12 API
OpenGL: 4.6
Recommended PSU: 550W
Power Connectors: 8 Pin*1
Output: DisplayPort 2.1b *2, HDMI 2.1b *2
Accessories: Quick guide
