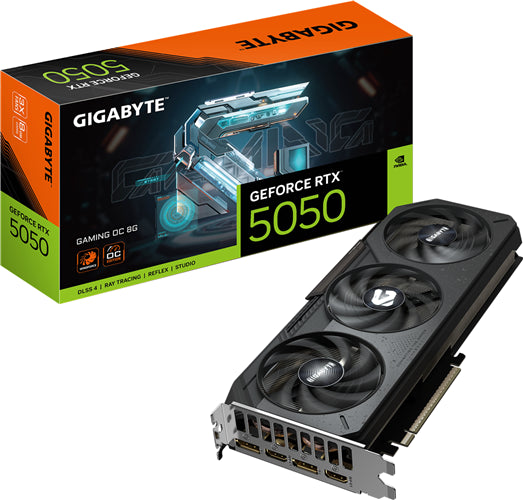

Gigabyte GV-N5050GAMING OC-8GD RTX5050 8GB Graphics Card

GeForce RTX™ 5050 GAMING OC 8G
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX™ 5050
- Integrated with 8GB GDDR6 128bit memory interface
- WINDFORCE cooling system
- Hawk fan
- Server-grade Thermal conductive gel
- Reinforced structure
- CORE CLOCK 2632 MHz (Reference card : 2572MHz)

NVIDIA Blackwell Architecture: The Ultimate Platform for Gamers and Creators
- Fifth-Gen Tensor Cores: Max AI performance with FP4 and DLSS 4
- New Streaming Multiprocessors: Optimized for neural shaders
- Fourth-Gen Ray Tracing Cores: Built for Mega Geometry
- AI-Enhanced Graphics and Performance: NVIDIA DLSS 4 with Multi Frame Generation
- Game-Winning Responsiveness: NVIDIA Reflex 2 with Frame Warp
- True-to-Life Graphics: Full ray tracing with neural rendering
- Digital Humans and AI Assistants: NVIDIA ACE
- Accelerate Your Creativity: NVIDIA Studio creator tools and technology
- Enhance Any Video with AI: NVIDIA Broadcast and ninth-gen NVIDIA Encoder
- Performance and Reliability: NVIDIA app with Game Ready and Studio Drivers
- The Ultimate Gaming Display Technologies: NVIDIA G-SYNC

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.

HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

ASTONISHING EXTERIOR DESIGN
The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.

MULTI-LAYERED VISUAL
Like armor, the exterior features a multi-layered structure combined with varied surface material finishes.

UNIQUE TEXTURE
Unique textures cover the curved surface, paired with the layering of appreance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics.

SLIDING SIDE PLATE
Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.

REINFORCED STRUCTURE
The reinforced backplate securely fastened to the I/O bracket, provides exceptional structural integrity.

SUPERIOR CRAFTSMANSHIP
ULTRA DURABLE - ULTRA COOLING - Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS - Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE - Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN: Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Graphics Processing: GeForce RTX™ 5050
Core Clock: 2632 MHz (Reference card : 2572MHz)
CUDA® Cores: 2560
Memory Clock: 20 Gbps
Memory Size: 8 GB
Memory Type: GDDR6
Memory Bus: 128 bit
Card Bus: PCI-E 5.0
Digital max resolution: 7680x4320
Multi-view: 4
Card size: L=280 W=117 H=40 mm
PCB Form: ATX
DirectX: DirectX 12 API
OpenGL: 4.6
Recommended PSU: 550W
Power Connectors: 8 Pin*1
Output: DisplayPort 2.1b *2, HDMI 2.1b *2
Accessories: Quick guide
Product Model: RTX 5050
Memory Size: 8GB
Base Clock Speed: Not Specified
Boost Clock Speed: 2632MHz
Max Displays: 4
Length: 280mm
DisplayPorts: 2
Mini DisplayPorts: None
HDMI Ports: 2
DVI Ports: None
VGA Ports: None
Colour: Black
