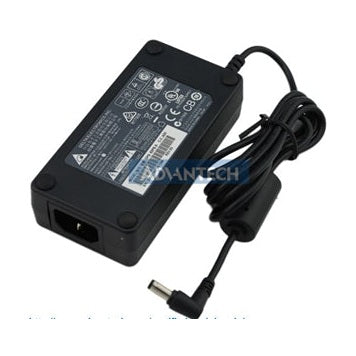

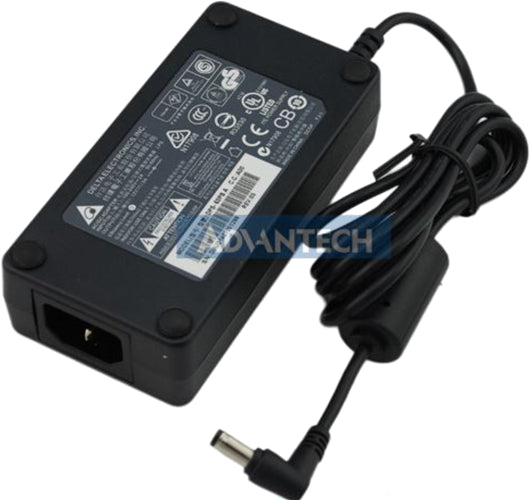

Advantech 96PSA-A60W12R1-1 FSP DC 12V 5A 60W AC Adaptor
Advantech
Advantech 96PSA-A60W12R1-1 FSP DC 12V 5A 60W AC Adaptor
**Inventory count is updated overnight**
**ADDITIONAL CHARGES MAY APPLY TO LARGE OR BULKY ITEMS**
**SOME ITEMS MAY REQUIRE SHIPPING QUOTES AND WILL BE CHARGED ONCE QUOTE ACCEPTED**
Full range AC input 90V~264V
Meet Energy Star EPS 2.0 /ErP Lot 7
No load Power Consumption _x0081_…0.21W High Reliability
Available for high altitude(5,000M) and DOE level VI
Output Power 60W
Output Voltage & Current 12VDC@5A
Efficiency (%) 88% minimum
Dimension (L x W x H) 110x62.2x31.3mm
Vibration 1g²/Hz at 10500 Hz
MTBF 100,000 hours at 25°C
Operating Temp. (°C) 0 to + 40°C
Safety & EMC Class B
Max Temp. (_x0081_‹C) @ Load 70C _x0081_— 80%
Safety Standard CUL (UL 60950) / CB (IEC 60950) / CCC / CE / FCC / GS (EN 60950) / KC / RCM /
Jug cord input
DC Jack
5.5mm outer, 2.5mm inner
